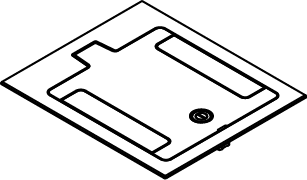

RFB119BTCBK Flush Tile or Carpet Cover Assembly in Black
Black cast aluminum flush cover assembly for RFB9 and RFB11 series, supporting 3,000 lbs load capacity
The RFB119BTCBK is a flush-mounted cover assembly designed for use with the RFB9 and RFB11 series floor boxes. This assembly features a cast aluminum construction with a powder coated black finish to match professional installations. It is specifically engineered to sit flush with the floor surface, making it suitable for environments utilizing tile or carpet. This component has a maximum load capacity of 3,000 lbs. For safety in environments where liquid may be present, this assembly is UL Listed to U.S. and Canadian safety standards to meet UL514A requirements for scrub water exclusion. Note that this specific assembly is not intended for use on bare concrete floor applications. Additionally, the product meets all material restrictions of RoHS and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 12.5 in (31.8 cm) |
| Height | 1.5 in (3.8 cm) |
| Width | 1.75 in (4.4 cm) |
| Color | Black |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the RFB119BTCBK designed for?
This cover assembly is designed for use with tile or carpet. It is not intended for use on bare concrete floors.
Can the RFB119BTCBK handle heavy foot or equipment traffic?
Yes, this assembly is rated for a maximum load capacity of 3,000 lbs.
Is this assembly rated for wet environments?
It is UL Listed to U.S. and Canadian safety standards under UL514A for scrub water exclusion.
What is the difference between the RFB119BTCBK and other RFB series covers?
The RFB119BTCBK is a specific color variant in black, while other RFB series options include Aluminum and Gray finishes.
Which documents are available for the RFB series submittals?
You can refer to the RFB9/11 Floor Box Cover Assemblies PDF or the RFB Series Resource Floor Boxes PDF for detailed submittal information.
