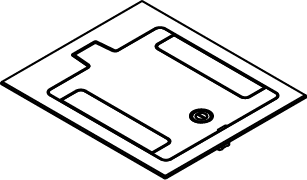

RFB119BTCAL Flush Tile or Carpet Cover Assembly in Aluminum
Aluminum flush cover assembly for RFB9 and RFB11 series floor boxes, supporting up to 3,000 lbs load capacity
The RFB119BTCAL is a cast aluminum cover assembly designed for use with the Wiremold RFB9 and RFB11 Series floor boxes. This component provides a flush-mounted finish when installed in tile or carpet, making it suitable for high-traffic commercial environments. It is engineered with a 3,000 lbs maximum load capacity to handle significant foot and equipment traffic. This assembly is UL Listed to U.S. and Canadian safety standards under UL514A to ensure scrub water exclusion. Note that this specific cover is not intended for use on bare concrete floor applications. The unit is TAA compliant and meets RoHS material restrictions for environmental compliance. This brushed aluminum finish provides a professional look for integrated floor box systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 12.5 in (31.8 cm) |
| Height | 1.5 in (3.8 cm) |
| Width | 1.75 in (4.4 cm) |
| Color | Aluminum |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
What floor types is the RFB119BTCAL designed for?
This assembly is designed for flush installation in tile or carpet. It is not rated for use on bare concrete floor applications.
What is the maximum weight capacity for this cover?
The RFB119BTCAL has a maximum load capacity of 3,000 lbs.
Is this product TAA compliant?
Yes, this part is TAA compliant and meets RoHS material restrictions.
What certifications does this cover assembly hold?
This product is UL Listed to U.S. and Canadian safety standards (UL514A) and is CULUS, RoHS, and USMCA certified.
Which Wiremold series is this cover compatible with?
This is a cover assembly specifically for the RFB9 and RFB11 Series floor boxes.
