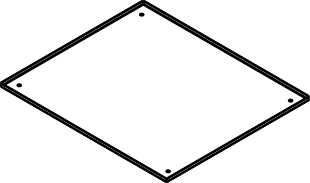

RFB119-PAN Mudcap for Terrazzo Floor Applications
Mudcap for RFB9 and RFB11 series floor boxes used on concrete or terrazzo floors 1/4" (6.35mm) or thicker
The Wiremold RFB119-PAN is a specialized mudcap designed for use on bare concrete or terrazzo-covered floors with a thickness of 1/4" (6.35mm) or greater. This component must be ordered separately from the floor box. For installations involving terrazzo heights greater than 1/4" (6.35mm), this mudcap must be used in conjunction with the RFB119-TS tile spacer. Specifically, installers should use one spacer for 3/8" (9.54mm) thick tile and two spacers for 1/2" (12.70mm) thick tile to ensure proper leveling. This TAA compliant accessory is RoHS compliant and meets USMCA requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
When is the RFB119-PAN required for floor box installation?
You must use this mudcap when installing on bare concrete or terrazzo-covered floors where the thickness is 1/4" (6.35mm) or greater.
How many RFB119-TS spacers do I need for different tile thicknesses?
Use one RFB119-TS spacer for 3/8" (9.54mm) thick tile, and two spacers if you are installing 1/2" (12.70mm) thick tile.
Is the RFB119-PAN a standalone unit or does it include the floor box?
This is a mudcap that must be ordered separately from the RFB9 or RFB11 series floor box.
Is this product TAA compliant for government contracts?
Yes, the RFB119-PAN is TAA compliant and meets RoHS material restrictions.
