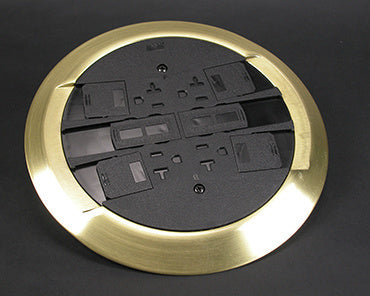

RC4CTCBS RC4 Multi Service Poke-Thru Finish Flange and Slide Holder Assembly in Brass and Black
Brass and black finish assembly for RC4 Multi-Service Poke-Thru devices installed in tile or carpet floors
The RC4CTCBS is a finish flange and slide holder assembly in a brass and black finish for the RC4 Multi-Service Poke-Thru series. This assembly is designed for use on floors covered with carpet or tile, provided the floor covering thickness is 1/8" minimum. It is not designed for installation in bare concrete or terrazzo. This unit is assembled with a scrub water gasket to facilitate installation. It is intended for use with RC4 Series Poke-Thru Devices, which require a 4" (102mm) diameter hole. The assembly includes Wiremold Open System unloaded adapters that accept four discrete keystone connectors from most manufacturers. Additionally, this unit includes Ortronics TracJack Mounting adapters and Ortronics Series II Communication Housing. Note that modular jacks are sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Brass and Black |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What kind of flooring is the RC4CTCBS compatible with?
This assembly is designed for use on tile or carpet floors with a minimum covering thickness of 1/8" (3mm). It is not designed for use with bare concrete or terrazzo.
What size hole is required for the RC4 series?
The RC4 Series Poke-Thru Devices require a 4" (102mm) diameter hole in the floor.
Does this assembly include the keystone jacks?
No, modular jacks are sold separately. This unit includes unloaded adapters that accept four discrete keystone connectors from most manufacturers.
What is included in the RC4CTCBS assembly?
The assembly includes the finish flange, slide holder, Wiremold Open System unloaded adapters, Ortronics TracJack Mounting adapters, and Ortronics Series II Communication Housing.
Is this product TAA compliant for government projects?
Yes, the RC4CTCBS is TAA Compliant.
