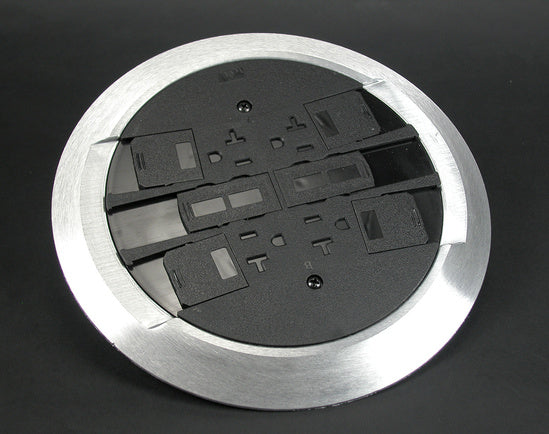

RC4CTCBK RC4 Multi Service Poke-Thru Finish Flange and Slide Holder Assembly in Black
Black finish flange and slide holder assembly for RC4 series poke-thru devices, designed for use on carpet or tile floors
The RC4CTCBK is a black finish flange and slide holder assembly designed for use within the RC4 Multi-Service Poke-Thru system. This assembly is intended for installation in floor coverings with a minimum thickness of 1/8" (3 mm) and is suitable for both tile and carpet applications. It is assembled with a scrub water gasket to ensure a proper seal. This specific assembly is designed for use with a 4" (102 mm) diameter hole and is not intended for installation in bare concrete or terrazzo. The kit includes Wiremold Open System unloaded adapters that can accept four discrete keystone connectors from a variety of manufacturers. Additionally, this unit includes Ortronics TracJack Mounting adapters and Ortronics Series II Communication Housing. Note that modular jacks must be purchased separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Black |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the RC4CTCBK compatible with?
This assembly is designed for use on tile or carpet floors with a minimum thickness of 1/8".
Do I need to buy keystones separately for this assembly?
Yes, modular jacks are sold separately from this RC4CTCBK assembly.
Can this be installed directly into bare concrete?
No, this device is not designed to work with bare concrete or terrazzo surfaces.
What size hole is required for the RC4 series?
The RC4 Series Poke-Thru Devices require a 4" (102 mm) diameter hole.
What is the difference between this and the other RC4 colors?
This SKU is the black finish variant; other options in the RC4 series include gray, ivory, aluminum, and brass finishes.
