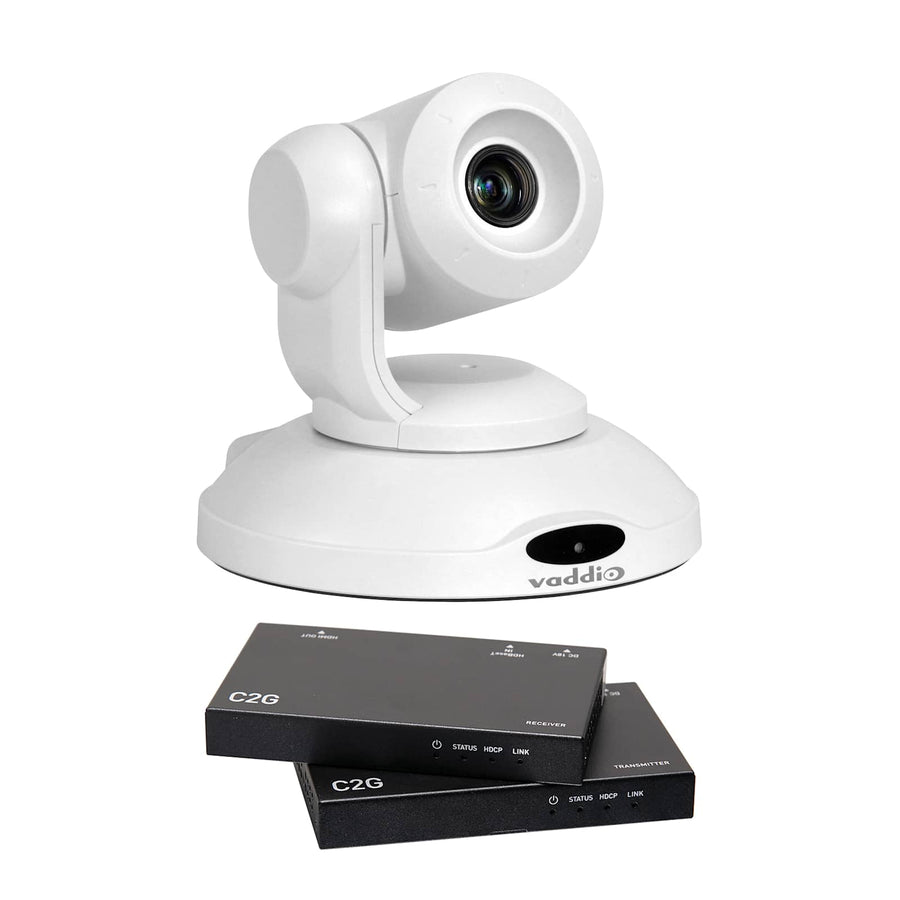

PrimeSHOT 10 HDMI with HDMI Extender
White PTZ camera with 10x optical zoom and included HDMI extender for medium to small rooms
The Vaddio PrimeSHOT 10 HDMI with HDMI Extender provides a high-definition imaging solution for medium and small room environments such as lecture halls, meeting rooms, and houses of worship. This white PTZ camera features a 1/2.8 Exmor CMOS image sensor capable of 1080p 60 resolution and delivers a field of view ranging from 67° wide to 7.6° tele. The unit is equipped with 10x optical zoom and stepper motors for precise pan and tilt movement, covering a pan range of ±165° and a tilt range of +90° to -30°. For flexible deployment, it offers simultaneous HDMI and IP streaming (H.264 RTSP or RTMP) outputs, allowing for local IMAG delivery and live streaming from a single source. This TAA compliant camera is easily managed via a built-in web-based user interface or through RS232 and Telnet protocols. The included extension system allows the HDMI signal to be sent up to 230 ft when utilizing a Cat6a cable.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Width | 6.1 in (15.5 cm) |
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
All other specifications 32
| Color | White |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension System | with HDMI Extender |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Less than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | With OneLINK EZIM |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Power Cord | US Cord |
| Power Supply | 12VDC3.0A |
| Power Type | Local Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077508562 |
| White Balance | AutoManual |
| Zoom | 10x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Questions about this part
How far can the HDMI signal be extended with this camera?
The included HDMI extender can send the signal up to 230 ft when using a Cat6a cable.
What video outputs are available on the PrimeSHOT 10 HDMI?
The camera provides simultaneous HDMI and IP streaming (H.264 RTSP or RTMP) outputs for local displays and live streaming.
Can I control this camera remotely via a network?
Yes, it features a built-in web-based user interface for remote configuration and management, as well as RS232 and Telnet control options.
What is the pan and tilt range for the PTZ movement?
The stepper motors provide a pan range of ±165° and a tilt range from +90° to -30°.
Is this camera suitable for TAA compliant projects?
Yes, the PrimeSHOT 10 HDMI is TAA compliant and carries CE and FCC certifications.
