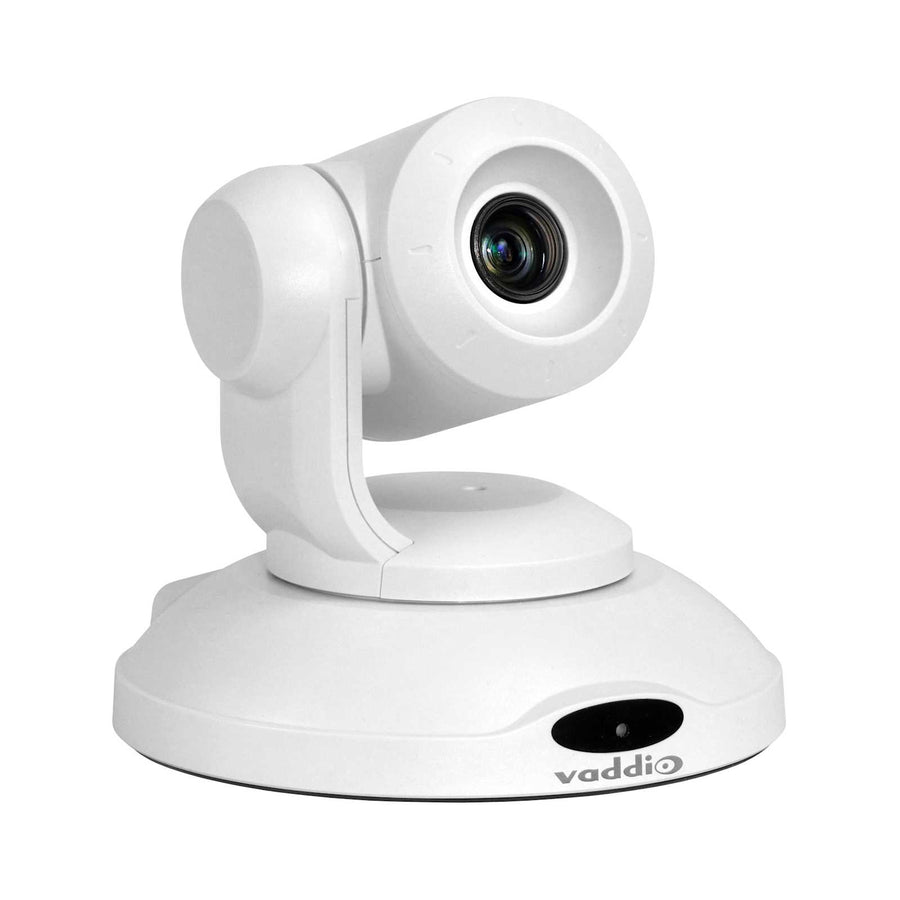

PrimeSHOT 10 HDMI
White PTZ camera with 10x optical zoom, simultaneous HDMI and IP streaming outputs, and 1080p 60 resolution
The Vaddio PrimeSHOT 10 HDMI (999-30410-000W) provides high-definition video performance for small to medium room environments like meeting rooms, lecture halls, and houses of worship. This white PTZ camera features a 1/2.8 Exmor CMOS image sensor and delivers 1080p 60 resolution for clear, professional video. It is equipped with a 10x optical zoom and a field of view ranging from a 67° wide end to a 7.6° tele end. For deployment flexibility, the camera supports simultaneous HDMI and H.264 (RTSP or RTMP) IP streaming outputs, allowing for a local display feed via HDMI and a direct broadcast to live streaming clients. Control is versatile, supporting RS232, Telnet, IR remote, joystick, and a built-in web-based user interface. For users requiring extended cable runs, this unit is OneLINK EZIM compatible, which adds 328ft (100M) of Power, Video, and Control extension. The camera is TAA compliant and features stepper motors for precise pan (±165°) and tilt (+90° to -30°) movement. Users can manage up to 16 custom preset positions for efficient camera movement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 6.1 in (15.5 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 34
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension System | without HDMI Extender |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Less than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | With OneLINK EZIM |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Power Cord | US Cord |
| Power Supply | 12VDC3.0A |
| Power Type | Local Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077508258 |
| White Balance | AutoManual |
| Zoom | 10x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Questions about this part
Yes, the PrimeSHOT 10 HDMI supports simultaneous outputs, providing an HDMI signal for local displays and IP streaming for live clients.
Yes, the PrimeSHOT 10 HDMI supports simultaneous outputs, providing an HDMI signal for local displays and IP streaming for live clients.
Can I control the PrimeSHOT 10 HDMI camera remotely?
The camera features a built-in web-based user interface for remote management, and it also supports RS232, Telnet, and IR remote control methods.
How far can I run cables if I use the OneLINK system?
When used with the OneLINK EZIM system, you can achieve 328ft (100M) of Power, Video, and Control extension.
What is the pan and tilt range of this PTZ camera?
The PrimeSHOT 10 HDMI offers a pan range of ±165° and a tilt range of +90° to -30° via its stepper motors.
What documents are available for submittals or installation?
Technical documentation includes a Data Sheet, CAD/PDF drawings, a Quick-Start Guide, and a complete Operation Manual.
