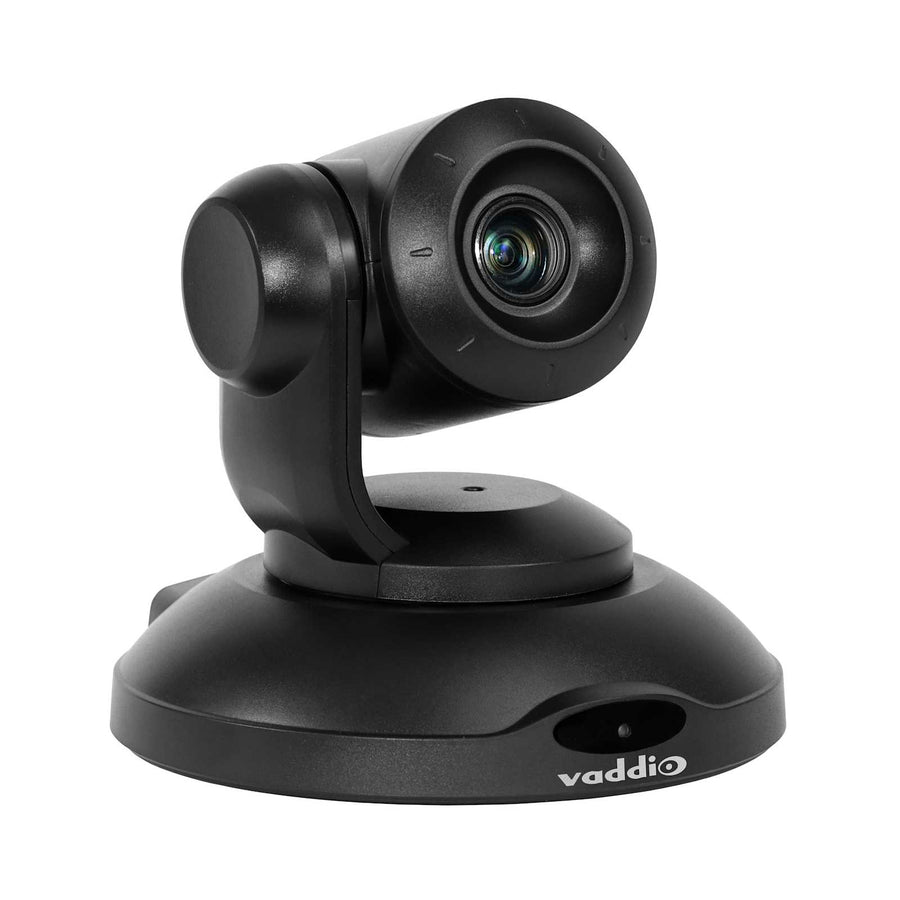

PrimeSHOT 10 HDMI
PTZ camera with 10x optical zoom, simultaneous HDMI and IP streaming outputs, and 1080p60 resolution
The Vaddio PrimeSHOT 10 HDMI is a professional PTZ camera designed for high-definition performance in small to medium rooms, such as meeting rooms, lecture halls, and houses of worship. This camera delivers 1080p 60 resolution using a 1/2.8 Exmor CMOS image sensor, providing high-quality imagery even in low-light environments with a minimum illumination of 0.4 Lux (F1.6). It features a 10x optical zoom and a field of view ranging from 67° wide to 7.6° tele. This unit is highly versatile for live production, offering simultaneous HDMI and H.264 (RTSP or RTMP) IP streaming outputs. This allows an installer to send a video feed to a local display for IMAG while simultaneously broadcasting a stream to a live streaming client. The camera supports RS232 and Telnet for 3rd party control, and includes a built-in web-based user interface for remote configuration and management. Users can manage up to 16 custom preset positions for various focus points and can control the unit via IR remote, joystick, or web UI. For long-distance setups, this camera is OneLINK compatible when paired with a OneLINK EZIM, which adds 328ft (100M) of power, video, and control extension. The unit is TAA compliant and includes a 3-year warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 6.1 in (15.5 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 34
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Extension System | without HDMI Extender |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Less than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | With OneLINK EZIM |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Power Cord | US Cord |
| Power Supply | 12VDC3.0A |
| Power Type | Local Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077508241 |
| White Balance | AutoManual |
| Zoom | 10x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Questions about this part
What video outputs does the PrimeSHOT 10 HDMI provide?
The camera provides simultaneous HDMI and IP streaming outputs, allowing for local display via HDMI and live streaming via H.264 (RTSP or RTMP) at the same time.
Will this camera work for long-distance cable runs?
Yes, this camera is OneLINK compatible when used with a OneLINK EZIM, which allows for 328ft (100M) of power, video, and control extension over a single cable.
What are the control options for the PrimeSHOT 10 HDMI?
You can control the camera using an IR remote, a joystick, RS232, Telnet, or through the built-in web-based user interface.
Can I manage multiple Vaddio cameras from one station?
Yes, you can easily deploy and manage hundreds of Vaddio devices using the free Vaddio Deployment Tool desktop application.
What is the field of view for this PTZ camera?
The PrimeSHOT 10 HDMI features a 67° wide field of view and a 7.6° tele end.
