PresenterPOD System

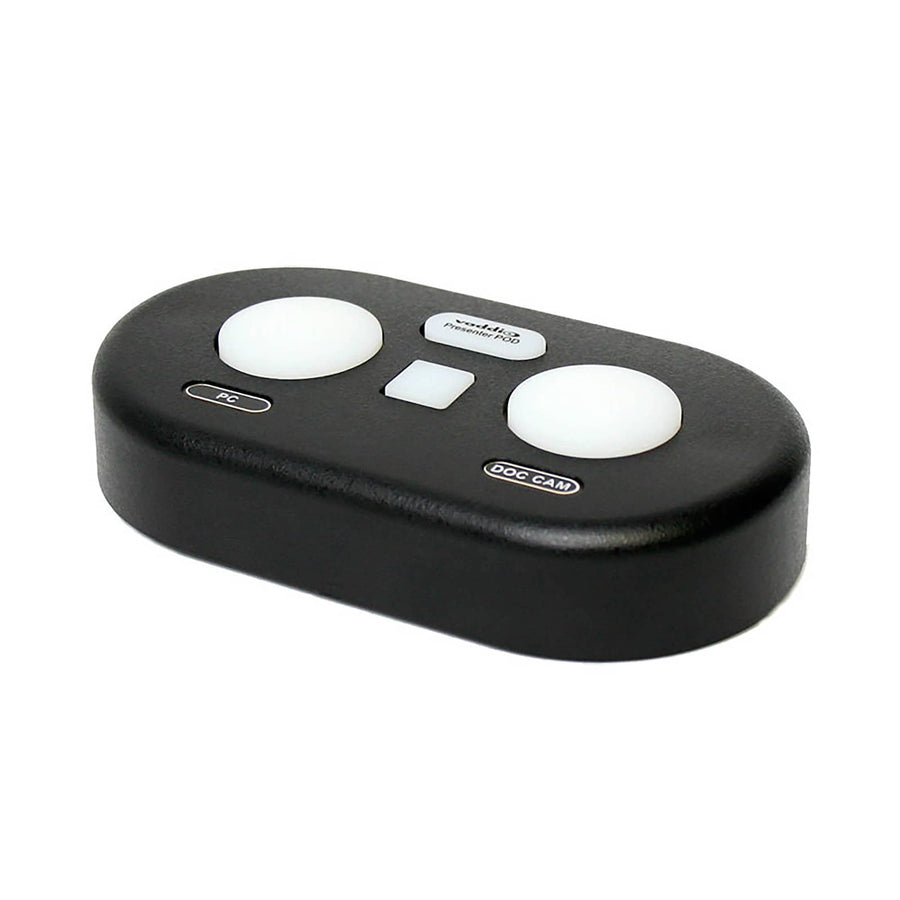

Manual preset trigger system for Vaddio switchers featuring two large buttons and one small square button for flexible content control
The 999-1111-000 PresenterPOD System is a manual preset trigger solution designed to give operators tactile control over automated content transitions. This system is built for use with Vaddio video switchers, specifically the AV Bridge 2x1, EasyIP Mixer, AV Bridge MatrixMIX, MATRIX PRO, and ProductionVIEW series. The kit includes one PresenterPOD with four trigger buttons—two large buttons for primary content sources and one small square button for specialized presets like picture-in-picture (PIP) adjustments. Control is managed through one included PresenterPOD Interface, which can be programmed to deliver either latching or momentary triggers. To scale up your control surface, a single Interface can support up to two PODs for a total of 8 triggers. The system connects via a single Cat. 5 cable from the POD to the Interface for both power and data, utilizing local power with a 12VDC, 1.0A supply. This TAA compliant system is designed for professional environments requiring reliable, physical interface control for complex switching tasks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8 in (20.3 cm) |
| Height | 1.47 in (3.7 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.2 lbs (1.5 kg) |
| Shipping Dimensions | 16" x 16" x 7" (406.4 x 406.4 x 177.8 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Width | 6 in (15.2 cm) |
| Color | Black |
All other specifications 9
| Control Method | Trigger |
| Control Type | Trigger |
| Power Cord | US Cord |
| Power Supply | 1.0A12VDC |
| Power Type | Local Power |
| TAA Compliant | Yes |
| UPC | 840077500863 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
1-RU Rack Panel for 2 Interfaces
998-6000-003$80.10
AV Bridge 2x1
999-8250-000$2,951.10
AV Bridge MATRIX PRO
999-8230-000$5,975.10
AV Bridge MatrixMIX
999-5660-000$8,644.50
EasyIP Mixer
999-60320-000$2,361.60
Additional PresenterPOD
998-1111-002$507.60
StepVIEW Mat - Small Exposed - 75 ft Attached Cable
999-1511-000Discontinued
StepVIEW Mat - Large Exposed - 75 ft Attached Cable
999-1512-000Discontinued
Questions about this part
Will the 999-1111-000 work with my Vaddio video switcher?
Yes, this system is designed for use with AV Bridge 2x1, EasyIP Mixer, AV Bridge MatrixMIX, MATRIX PRO, and ProductionVIEW switchers.
How many total triggers can I control with one Interface?
A single PresenterPOD Interface can support up to 2 PresenterPOD units, providing a total of 8 triggers.
Can I change the trigger behavior between latching and momentary?
Yes, the PresenterPOD Interface can be programmed for either latching or momentary trigger types to suit your workflow.
Does this system require additional hardware to function?
This kit includes the Interface and one POD. You can add more control capability by purchasing an additional PresenterPOD (SKU 998-1111-002).
What is required for the physical installation of the PresenterPOD?
The system includes mounting hardware and adhesive labels; connection to the Interface requires a single Cat. 5 cable.
