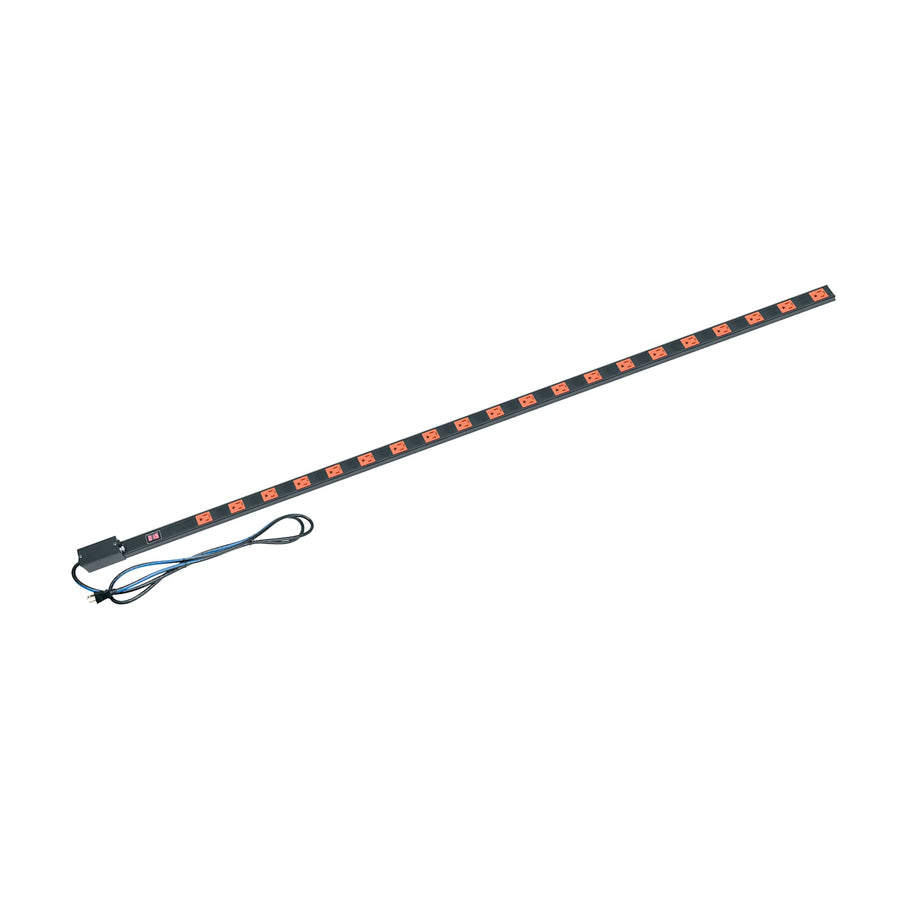

PDT Low Profile Vertical Power Strip, 20 Outlet, 15A with Local Meter
20-outlet vertical power strip with 15A capacity, integrated LED amperage meter, and 9 ft SignalSAFE cord
The Middle Atlantic PDT-2015C-M-NS provides high-density power distribution in a thin-chassis design that maximizes available rack space. This 20-outlet vertical power strip is engineered to mount unobtrusively in the back of a rack, placing power sources immediately adjacent to the equipment. It features a 1.58" (4 cm) width and a 2.1" (5.3 cm) depth, making it an ideal solution for tight enclosures where space is at a premium. The unit includes a built-in local meter with a bright LED display that provides real-time monitoring of the amperage being drawn by the connected equipment. To minimize potential electromagnetic interference from other rack-mounted devices, this corded model utilizes a SignalSAFE™ wire with a 9 ft (2.7 m) length and a standard 5-15P plug. The PDT-2015C-M-NS is ETL Listed and includes the necessary mounting hardware to snap the PDU into place on any style of Middle Atlantic rack rail brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 73.1 in (185.7 cm) |
| Shipping Weight | 5.6 lbs (2.5 kg) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | Yes |
| Number of Circuits | 1 |
| Outlet Count | 20 |
| Plug Type | 5-15P |
| UPC | 656747129803 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-2015C-M-NS fit in my existing Middle Atlantic rack?
Yes, this PDT series strip is designed to mount to every style of Middle Atlantic rack rail brackets using the included mounting hardware.
What is the benefit of the SignalSAFE cable on this PDU?
The corded 9 ft (2.7 m) model uses SignalSAFE™ wire, which is specifically designed to minimize potential interference from AC magnetic fields produced by other equipment in your rack.
How do I monitor power draw on the PDT-2015C-M-NS?
This model features a built-in local meter with a bright LED display that shows the real-time amperage the connected equipment is drawing.
What installation tools are required for the PDT-2015C-M-NS?
The unit includes mounting hardware that allows you to snap the PDU into the rack rail brackets; check the PDT Series Instruction Sheet for specific installation steps.
Does this power strip provide surge protection?
The PDT-2015C-M-NS is a power distribution strip designed for high-density vertical mounting and does not include a listed surge protection type.
