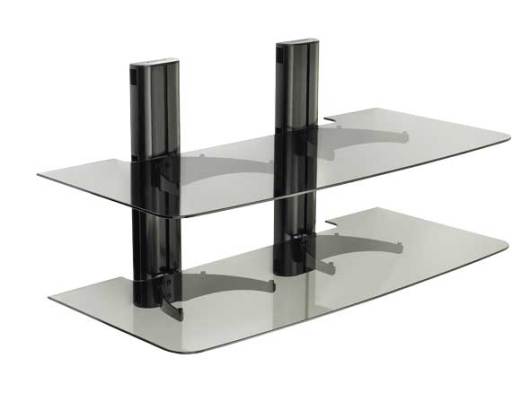

On-Wall Component Shelving Double-column AV component system with two shelves
Double-column component shelving with two adjustable tempered-glass shelves, designed for mounting directly under wall-mounted TVs
The Sanus VF2022-B1 is a double-column AV component system that mounts directly under wall-mounted TVs to provide a streamlined look. This black shelving system features two columns that are vertically adjustable, allowing for precise alignment under a display even after the TV has been hung. Each of the two columns includes integrated channels with over four square inches of space, which facilitates the routing of power cables and signal wires to keep them concealed. The system includes two tempered-glass shelves that are strong, safe, and capable of supporting up to 75 lbs (34 kg) each. These shelves can be vertically adjusted to accommodate various equipment heights and specific AV component arrangements. This system can be used as a TV on a stand, mounted to a pillar system, or mounted directly to a wall.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 21.25 in (54 cm) |
| Package Depth | 19.75 in (50.2 cm) |
| Package Height | 5.75 in (14.6 cm) |
| Package Width | 45.75 in (116.2 cm) |
| Product Weight | 57.4 lbs (26 kg) |
| Width | 39 in (99.1 cm) |
| Accessory Type | Component Shelves |
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench1/8" Drill Bit3/16" Drill Bit7/16" Socket WrenchAllen WrenchAwlElectric DrillLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Universal Mounting | No |
| UPC | 793795490025 |
Resources
You'll need these with it
Questions about this part
How much weight can each shelf hold?
Each tempered-glass shelf is designed to support up to 75 lbs (34 kg) of equipment.
Can I mount a soundbar to this system?
Yes, you can use the SA405 Soundbar Speaker Mount to attach soundbars weighing up to 15 lbs (6.8 kg).
Does this system help with cable management?
Yes, the columns feature integrated channels with over four square inches of space to route power and signal cables separately.
What tools are required for installation?
You will need an electric drill, a level, a stud finder, a tape measure, a pencil, a Phillips head screwdriver, an Allen wrench, and various drill bits (1/8", 3/16") and socket wrenches (1/2", 7/16").
What is the difference in how I can install the VF2022-B1?
The system offers three installation methods: mounting the TV directly to the pillar system, mounting the TV to a wall, or using it as a TV stand.
