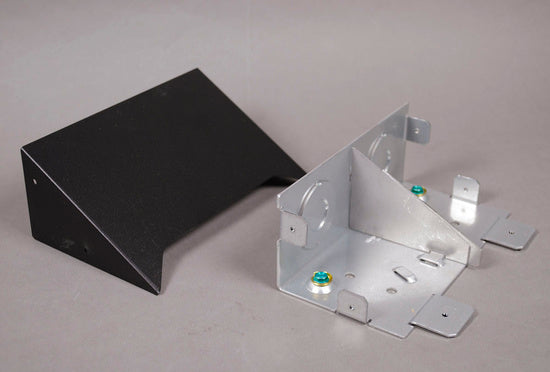

OFR10A OFR Overfloor Raceway Entrance End Fitting
Entrance end fitting for the OFR Series Overfloor Raceway System, providing ADA compliant profile for overfloor installations
The Wiremold OFR10A serves as an entrance end fitting for the OFR Series Overfloor Raceway System. This system is designed to be installed over existing floor coverings, making it a practical solution for permanent or relocatable installations where cutting through floors or ceilings is not feasible. This specific fitting works within a system that provides four-channel capacity, allowing for a wide range of power, communications, and A/V connectivity options. The OFR series is built with a low-profile, narrow design that remains ADA compliant for safety and accessibility. This component is TAA compliant and meets RoHS material restrictions. The unit measures 7 in (17.8 cm) in depth, 4.75 in (12.1 cm) in width, and 2.5 in (6.4 cm) in height.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 7 in (17.8 cm) |
| Height | 2.5 in (6.4 cm) |
| Width | 4.75 in (12.1 cm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Black |
Resources
You'll need these with it
Questions about this part
What is the OFR10A used for in an installation?
The OFR10A is an entrance end fitting used to start or finish a run of the OFR Series Overfloor Raceway System.
What accessories do I need for the OFR Series raceway?

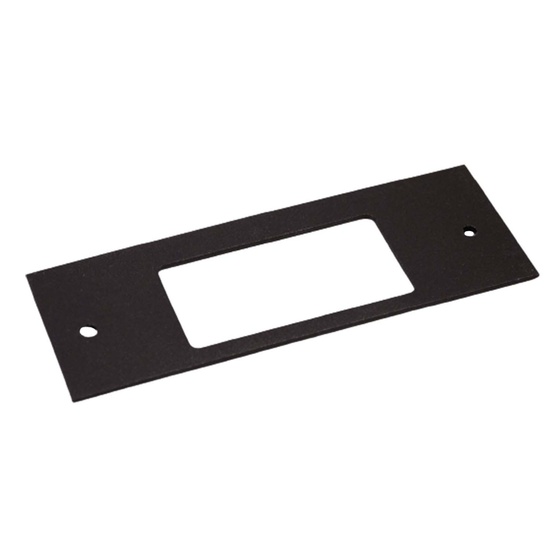

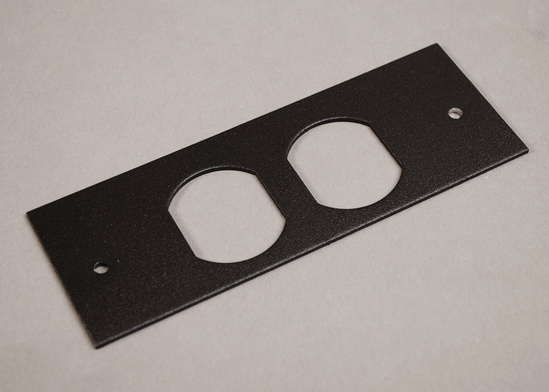

Depending on the device requirements, you can use compatible plates such as the OFR47-D Duplex Device Plate or the OFR47-R Decorator Device Plate.
Is the OFR10A suitable for environments with strict material requirements?
Yes, this product meets RoHS material restrictions and is TAA compliant.
Can this raceway system be installed over existing flooring?
Yes, the OFR Series is designed to be installed directly over existing floor coverings for both relocatable and permanent setups.
Which documentation is available for the OFR series?
You can refer to the OFR Series Overfloor Raceway Cut Sheet or the OFR Series Overfloor Raceway Brochure for technical details.
