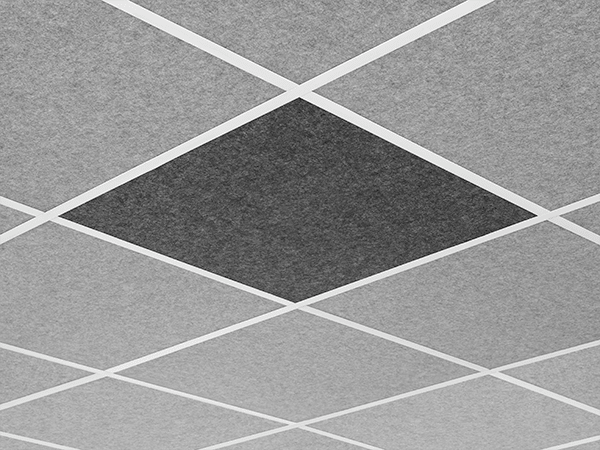

Nivo™ Acoustic Ceiling Tile with Flush Profile in Charcoal Gray, Flush, 15/16" Layin
Charcoal Gray 2'x2' acoustic ceiling tile with a flush profile for 15/16" lay-in grids
The AUNV220DG1CHG is a Nivo™ Acoustic Ceiling Tile designed to sit snugly within a 2' x 2' (60.33 x 60.33 cm) grid ceiling. Finished in Charcoal Gray, this tile is constructed from 100% Polyester PET Felt and utilizes AirCore® technology to maximize sound absorption and reduce ecological impact. This specific SKU features a flush profile for 15/16" lay-in mounting, designed to create a continuous acoustic surface. To achieve a specific drop position, installers can specify an ideal placement up to 7" down from the ceiling plane in 1" increments. These tiles are engineered for easy assembly through a toolless, four-step installation process, arriving in flat packaging to reduce shipping costs. This solution is BAA compliant and is suitable for controlling reverberation levels in commercial environments like offices and conference rooms.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 0 in (0 cm) |
| Height | 2 in (5.1 cm) |
| Width | 2 in (5.1 cm) |
| Color | Charcoal Gray |
| Material | PET Felt (100% Polyester) |
| Mounting Method | 15/16" Layin |
| Profile | Flush |
| Certifications | BAA Compliant |
Resources
Questions about this part
Will this tile fit a standard 2x2 ceiling grid?
Yes, the AUNV220DG1CHG is a 2' x 2' (60.33 x 60.33 cm) tile designed specifically for 15/16" lay-in grid systems.
How do I install the Nivo™ acoustic tiles?
The tiles feature a toolless, four-step installation process and arrive in flat packaging for efficient assembly on-site.
Can I adjust the vertical position of these tiles?
Yes, you can specify a drop position up to 7" down from the ceiling plane, with adjustments available in 1" increments.
What material is used for these acoustic tiles?
These tiles are made from 100% Polyester PET Felt and feature patented AirCore® technology to optimize sound absorption.
What documents are available for submittals?
Detailed information is available in the Nivo™ Acoustic Unlit Ceiling Tile Instruction Sheet and the Nivo™ Acoustic Unlit Ceiling Tile Data Sheet.
