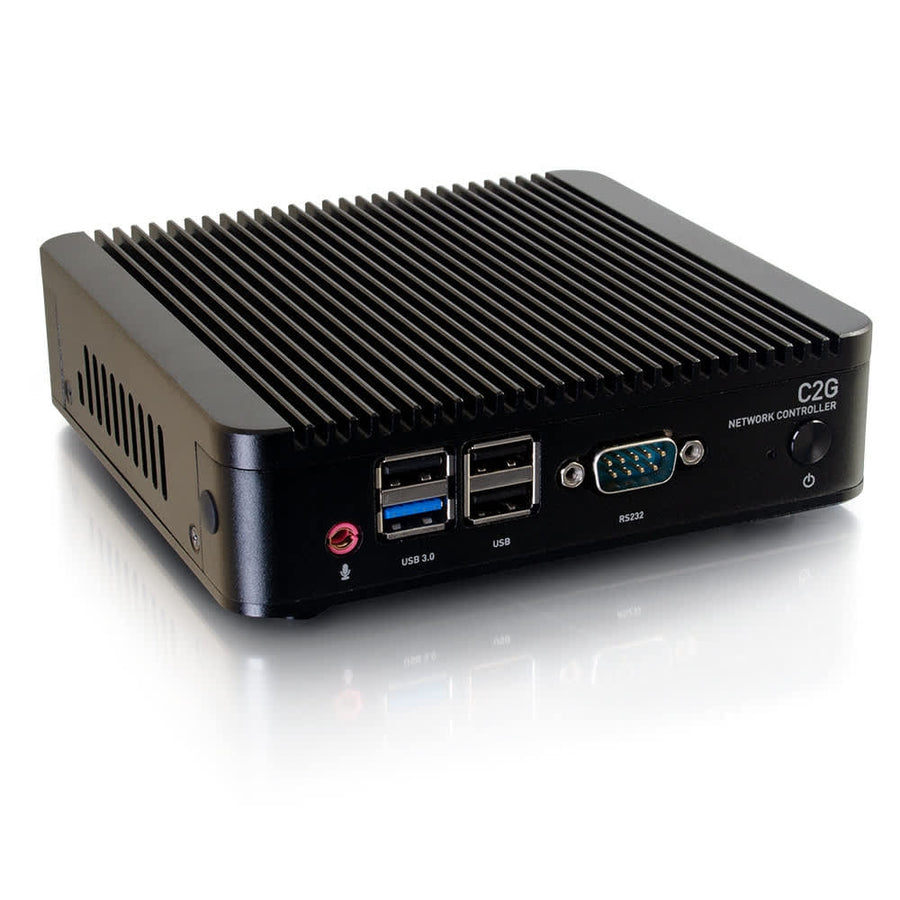

Network Controller for HDMI® over IP
Linux-based HDMI over IP controller for centralized system management, auto-discovery, and API-based automation control
The C2G CG29977 Network Controller for HDMI over IP is a Linux-based PC designed to provide centralized setup, configuration, and management for HDMI over IP systems. This active device facilitates video wall and multiview connectivity by allowing users to auto-discover, configure, and manage connectivity for connected C2G HDMI over IP products across a local area network (LAN). It also serves as a platform to facilitate firmware upgrades for all AV over IP devices on the network. Users can manage the controller through a Web interface or via the C2G AVoIP Control smartphone and tablet app. For advanced integrations, an available Application Program Interface (API) supports various third-party partner control applications. The hardware features an Intel Celeron J1800 Processor @ 2.41GHz with 4 cores, 2GB of DDR3 memory, and integrated Intel HD Graphics. Connectivity includes HDMI and VGA outputs, as well as RJ-45, USB-A, and RS-232 ports.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 51 in (129.5 cm) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 2.49 lbs (1.1 kg) |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 11
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | Black |
| Connector 1 | (1) 3.5mm Female(1) USB 3.0 A Female(1) USB-A Female(1) USB-A Female(1) USB-A FemaleRS-232 |
| Connector 2 | (1) 3.5mm Female(1) HDMI Female(1) RJ-45 Female(1) RJ-45 Female(1) VGA Female |
| Port Selection | API Commands |
| Product Type | Active DeviceController |
| TAA Compliant | No |
| UPC | 757120299776 |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG29977 work with my existing HDMI over IP setup?
Yes, it can scan your LAN to auto-discover and manage C2G HDMI over IP products for video wall or multiview configurations.
How is the CG29977 managed and controlled?
You can manage the controller via a Web interface or the C2G AVoIP Control App for mobile devices.
Can I use third-party control systems with this controller?
Yes, an Application Program Interface (API) is available to support several third-party partner control applications.
What video resolutions are supported by this controller?
The CG29977 supports 1080p and 4K video resolutions, including 4K @ 30Hz and 4K @ 60Hz.
What hardware is inside the CG29977?
The unit is powered by an Intel Celeron J1800 Processor @ 2.41GHz with 4 cores and includes 2GB of DDR3 memory.
