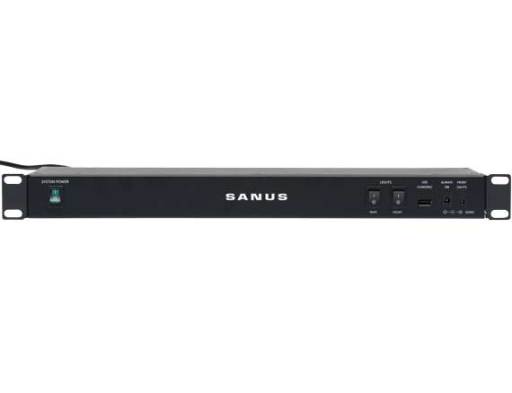

MultiVolt Power Supply SANUS EcoSystem® accessory
Centralized power supply for low-voltage rack equipment, featuring integrated USB, 12V, and thermostat-controlled power options
The SANUS CAPT01-B1 MultiVolt Power Supply serves as the foundation for a customizable SANUS EcoSystem® setup. This rack accessory provides a single, centralized power source for all low-voltage equipment within an AV rack. The front panel is equipped with switches to control light accessories, a 5V USB port, and specialized 12V connections for always-on power or light-only use. The rear of the unit includes 5V USB ports, 12V connections, and thermostat-controlled ports. For active thermal management, this unit includes a thermostat kit designed to monitor internal rack temperature and activate fans automatically. By integrating this power supply with other SANUS EcoSystem® accessories, installers can build a tailored power distribution network that meets specific rack requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.5 in (11.4 cm) |
| Package Depth | 3.66 in (9.3 cm) |
| Package Height | 9.92 in (25.2 cm) |
| Package Width | 20.71 in (52.6 cm) |
| Shipping Dimensions | 20.75" x 10.5" x 3.5" (527.1 x 266.7 x 88.9 mm) |
| Shipping Weight | 6.5 lbs (3 kg) |
| Width | 17 in (43.2 cm) |
| Accessory Type | Power |
| Color | Black |
| Universal Mounting | No |
| UPC | 793795524140 |
Resources
Questions about this part
What is the purpose of the CAPT01-B1 in a rack?
It acts as the primary power source for low-voltage equipment within the SANUS EcoSystem®, allowing you to centralize power for multiple rack accessories.
Does this power supply include temperature monitoring?
Yes, the CAPT01-B1 includes a thermostat kit to monitor rack temperature, which can be used to automatically activate fans.
What types of power connections are available on the CAPT01-B1?
The unit provides 5V USB ports, 12V always-on power connections, and 12V connections specifically for lighting accessories.
How do I expand my SANUS EcoSystem® power setup?
You can add additional SANUS EcoSystem® accessories to the CAPT01-B1 to create a customized power distribution network for your specific rack needs.
Which document should I use for installation details?
The CAPT01 Installation Manual (PDF) provides the necessary guidance for mounting and integrating this unit into your rack.
