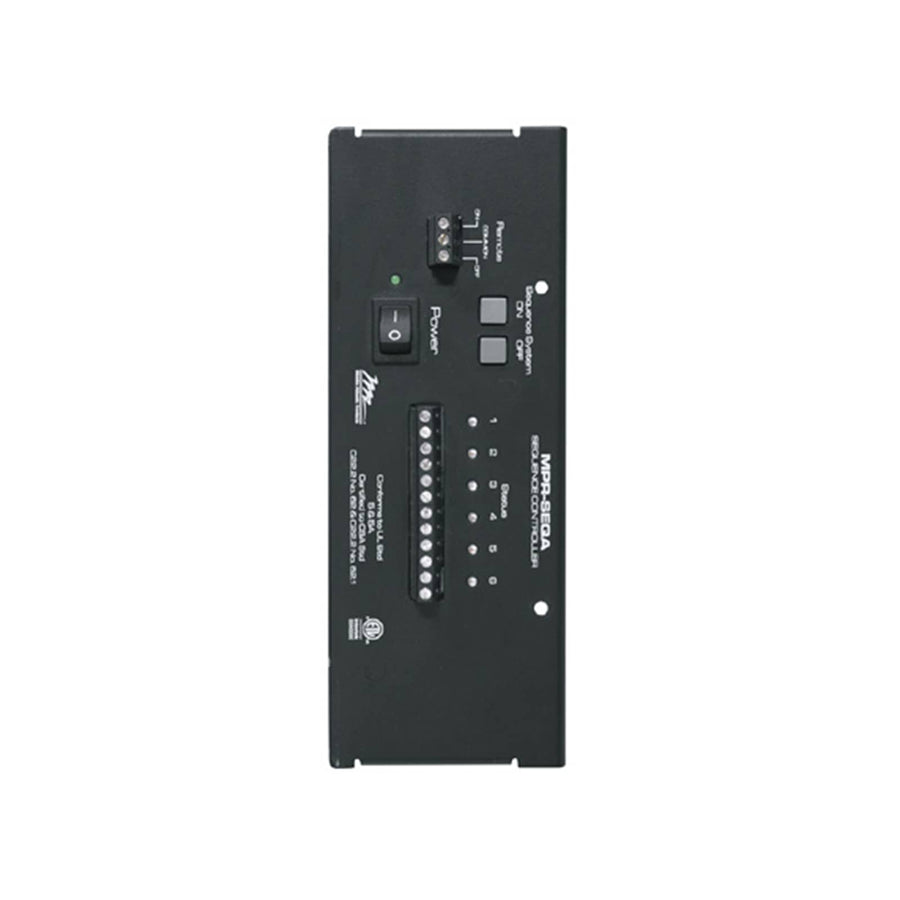

MPR Sequencing Controller
6-step power sequencing module for MPR Series raceways, providing configurable restart functionality and 120 VAC input.
The MPR-SEQA is a sequencing controller module designed to provide 6-step control to RLM modules within the MPR Series. This unit facilitates organized power-up and power-down procedures by providing sequencing to any AC power distribution system that can be managed via low voltage switch closure. It features sequential restart functionality to manage power in the event of an outage. The controller is built with a steel construction and finished in a black textured powder coat. This 120 VAC module utilizes a unique genderless connector for input power and is TAA compliant. Installation can be managed locally using the front panel switch or via any momentary contact closure switch, such as a single pole, double throw, center off switch. It is specifically designed for use with MPR Series raceways to ensure stable system initialization.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 8 in (20.3 cm) |
| Volts AC | 120 VAC |
| Number of Circuits | 1 |
| Sequencing | Yes |
| Special Features | Configurable Power |
| UPC | 656747190698 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Will the MPR-SEQA work with my MPR Series raceway?
Yes, this controller is specifically designed to be compatible with the MPR Series raceway system.
How is the sequencing triggered on the MPR-SEQA?
Sequencing can be initiated via the front panel switch or by using a momentary contact closure switch, such as a single pole, double throw, center off type.
What happens if there is a power outage?
The module features sequential restart functionality to manage how power is restored to the system following an outage.
Does this unit require specific jumpers for installation?

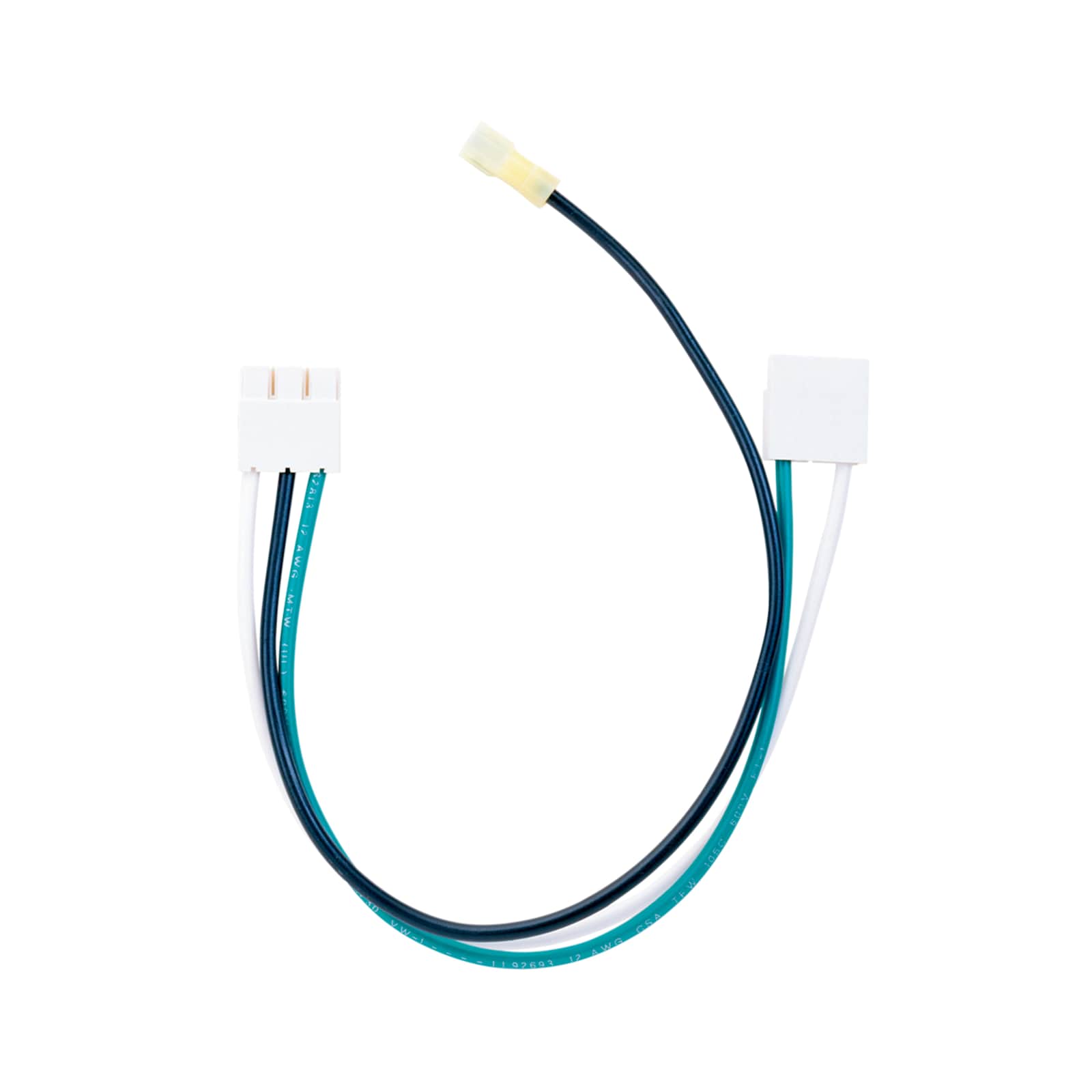

While the module provides sequencing, you may need various jumpers such as the J-12X6 or J-24X6 pre-terminated jumpers to complete your MPR setup.
Is the MPR-SEQA TAA compliant?
Yes, this product is TAA compliant and features ETL Recognition.
