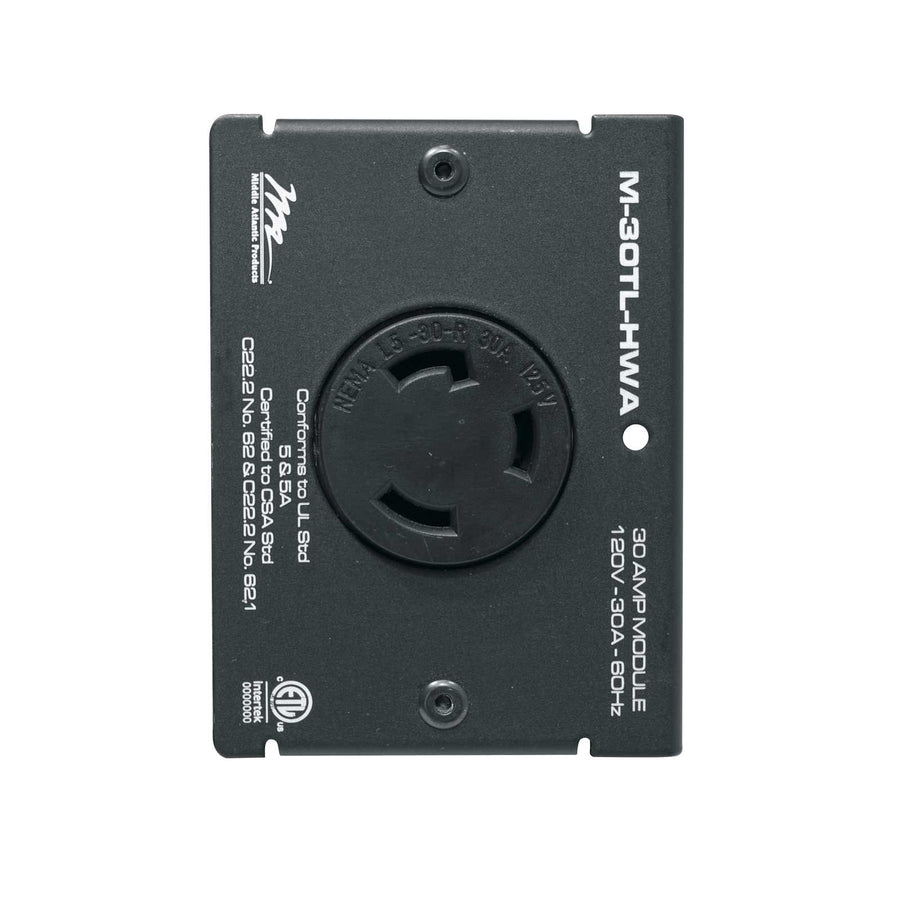

MPR Module, 30A, Twistlock L5-30R Hardwired
30A hardwired MPR module featuring a single L5-30R twistlock receptacle for custom power configurations
The M-30TL-HWA is a specialized MPR Module designed to integrate into Middle Atlantic MPR Series raceway systems. This module provides a single L5-30R receptacle type outlet, allowing installers to customize power strips to meet specific project electrical requirements. It operates on 120 VAC and is rated for 30 Amp loads. For installation, this module requires a hard-wired connection with strain relief to ensure a secure 115V input power connection. Constructed from steel with a black textured powder coat finish, it is built for durability in professional AV environments. This TAA compliant module is ETL Recognized and provides configurable power options for complex vertical power distributions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 30 Amp |
| Depth | 4 in (10.2 cm) |
| Volts AC | 120 VAC |
| Cable Type | Hard-Wired |
| Isolated Ground | No |
| Number of Circuits | 1 |
| Outlet Count | 1 |
| Receptacle Type | L5-30R |
| Special Features | Configurable Power |
| UPC | 656747190674 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Will this module fit my MPR Series raceway?
Yes, this module is specifically designed for compatibility with Middle Atlantic MPR Series raceways.
What type of power connection is required for the M-30TL-HWA?
This module requires a hard-wired connection to 120 VAC power and includes strain relief for the input.
What additional items are needed to complete my power installation?
Depending on your configuration, you may need jumpers like the JMS-12X6 or pre-terminated tails such as the T-24X6.
Is this module suitable for TAA compliant projects?
Yes, this module is TAA compliant, making it suitable for projects with specific procurement requirements.
Does this module feature an isolated ground?
No, this specific M-30TL-HWA model does not include an isolated ground.
