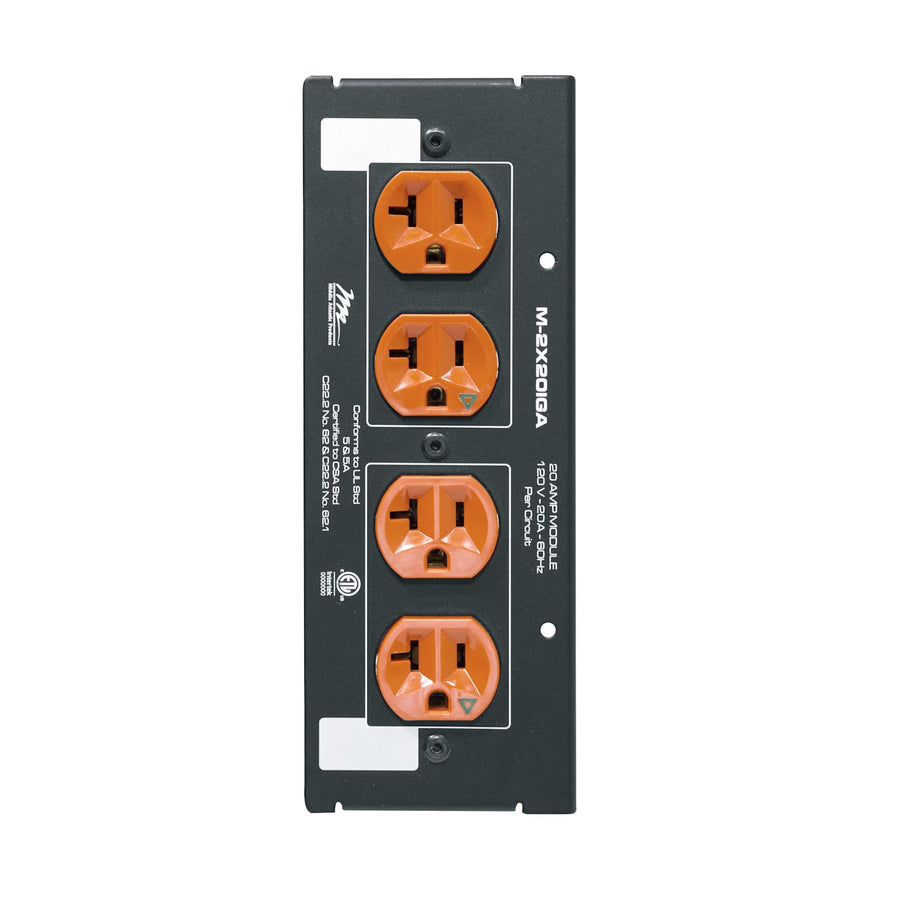

MPR Module, 20A, IG Double Duplex
20A double duplex module for MPR Series raceways, featuring 4 isolated ground outlets and 120 VAC input
The M-2X20IGA is a power module designed for use within the Middle Atlantic MPR Series raceway systems. This specific module provides 20 Amp, 120 VAC service through four 5-20R IG receptacles. Because it features an isolated ground design, it is suitable for environments requiring reduced electrical noise. The module is constructed from steel with a black textured powder coat finish and utilizes a unique genderless connector for 115V input power. This configurable power component allows installers to customize the power strip layout to meet specific project requirements. To complete the power distribution within the MPR raceway, you will need to purchase compatible jumpers or tails, such as the J-12X6, J-24X6, or JMS-12X6.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 8 in (20.3 cm) |
| Volts AC | 120 VAC |
| Isolated Ground | Yes |
| Number of Circuits | 2 |
| Outlet Count | 4 |
| Receptacle Type | 5-20R IG |
| Special Features | Configurable Power |
| UPC | 656747190650 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Is the M-2X20IGA compatible with MPR Series raceways?
Yes, this module is designed specifically for use within Middle Atlantic MPR Series raceway systems.
What electrical specifications does the M-2X20IGA support?
The module provides 20 Amp, 120 VAC service with 5-20R IG receptacles and includes an isolated ground.
What accessories are needed to complete the installation?
You will need MPR-compatible jumpers or tails, such as the JMS-12X6, J-12X6, or the T-24X6 tails.
What is the certification status of this module?
The M-2X20IGA is TAA compliant and has ETL recognition.
