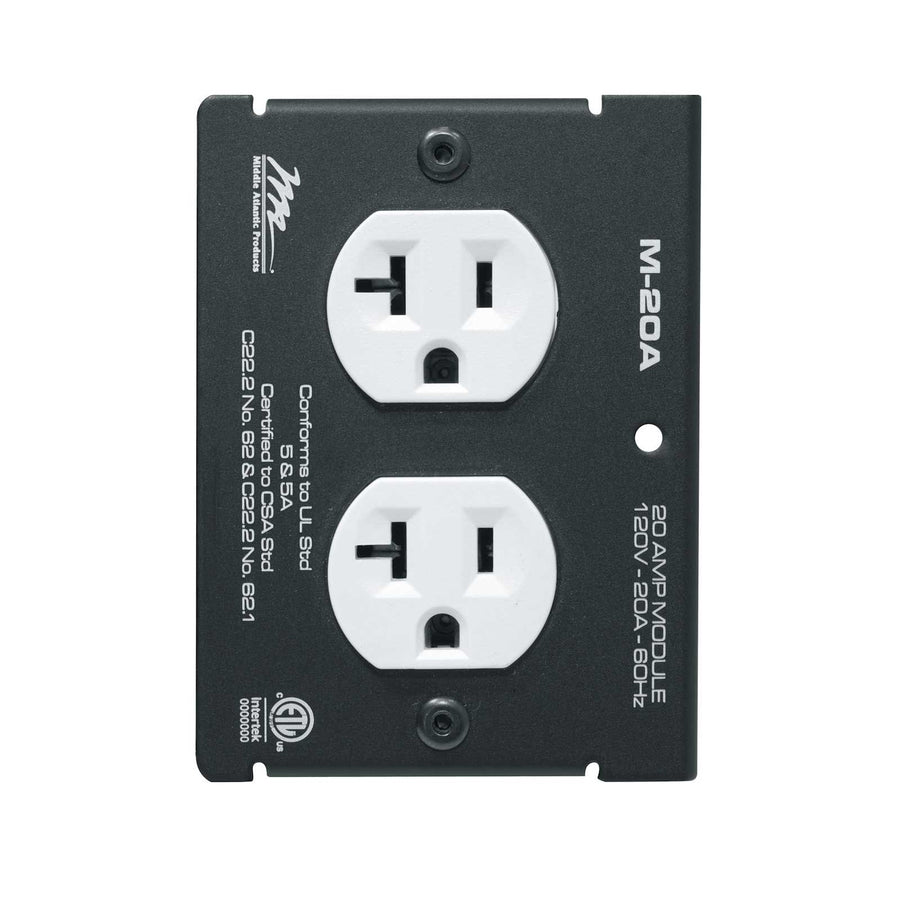

MPR Module, 20A, Duplex
20A duplex module with 5-20R receptacles for custom MPR Series raceway power configurations
The Middle Atlantic M-20A is a 20 Amp duplex power module designed for integration into MPR Series raceways. This module allows installers to customize a power strip to meet specific project requirements by providing configurable power options within the raceway system. It features a 5-20R receptacle type and provides 120 VAC input power via a unique genderless connector. Built with a steel construction and a black textured powder coat finish, this module is rated for 120 VAC and is ETL Recognized. It operates on a single circuit to provide two outlets per module, making it a versatile component for professional AV installations requiring reliable power distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 4 in (10.2 cm) |
| Volts AC | 120 VAC |
| Isolated Ground | No |
| Number of Circuits | 1 |
| Outlet Count | 2 |
| Receptacle Type | 5-20R |
| Special Features | Configurable Power |
| TAA Compliant | No |
| UPC | 656747190629 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Will this module work with my existing MPR raceway?
Yes, the M-20A is specifically designed to be compatible with MPR Series raceways for custom power configurations.
What type of receptacle is included on the M-20A?
This module features a duplex 5-20R receptacle type providing two outlets per module.
What other components are needed to complete the power strip?
To complete your setup, you may need jumpers like the J-12X6 or J-24X6, or tails such as the T-24X6.
Does this module require a specific connection type?
The module uses a unique genderless connector to receive its 115V input power within the MPR system.
Which document should I use for installation instructions?
For operational guidance, you can refer to the M Series Power Modules Instruction Sheet.
