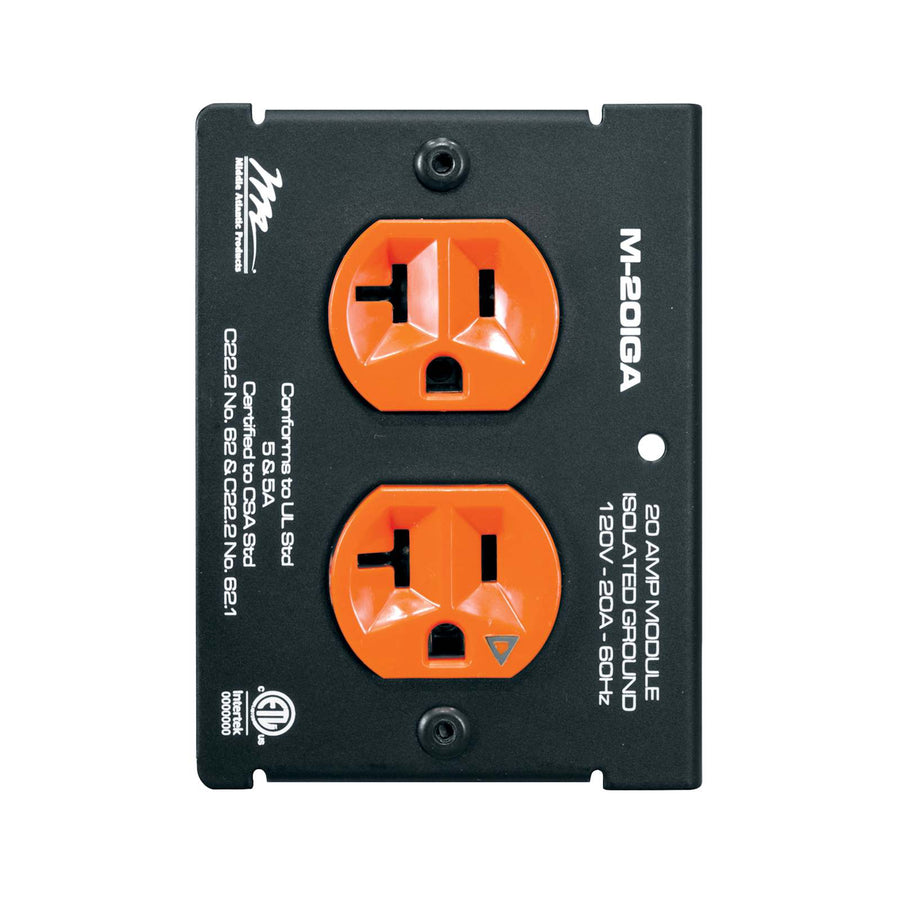

MPR Module, 20A, Duplex Iso Ground
20A duplex isolated ground module for customization of MPR Series raceway power strips
The M-20IGA is a 20 Amp duplex module designed for use within the MPR Series modular raceway system. This module facilitates custom power strip configurations to meet specific project requirements. It features two 5-20R IG receptacles providing isolated ground protection for sensitive equipment. Operating on 120 VAC, the unit utilizes a unique genderless connector for 115V input power. This steel construction module is finished with a black textured powder coat. It is ETL Recognized and provides one circuit of power. Installers can customize their raceway layouts by integrating this module with compatible jumpers such as the J-12X6 or J-72X6.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 4 in (10.2 cm) |
| Volts AC | 120 VAC |
| Isolated Ground | Yes |
| Number of Circuits | 1 |
| Outlet Count | 2 |
| Receptacle Type | 5-20R IG |
| Special Features | Configurable Power |
| TAA Compliant | No |
| UPC | 656747190643 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Will this module fit into my existing power system?
The M-20IGA is specifically designed for compatibility with MPR Series raceways to allow for customized power configurations.
What type of grounding does this module provide?
This is an isolated ground module featuring two 5-20R IG receptacles for sensitive equipment applications.
What additional components are required to install this module?
To connect modules within a raceway, you will need jumpers such as the J-12X6, J-24X6, or J-72X6.
How does the power connection work for this module?
The module uses a unique genderless connector to accept 115V input power.
Which document provides the technical drawings for this part?
The MPR Series Modular Raceway System CAD Technical Specification Drawings (zip) can be used for submittals.
