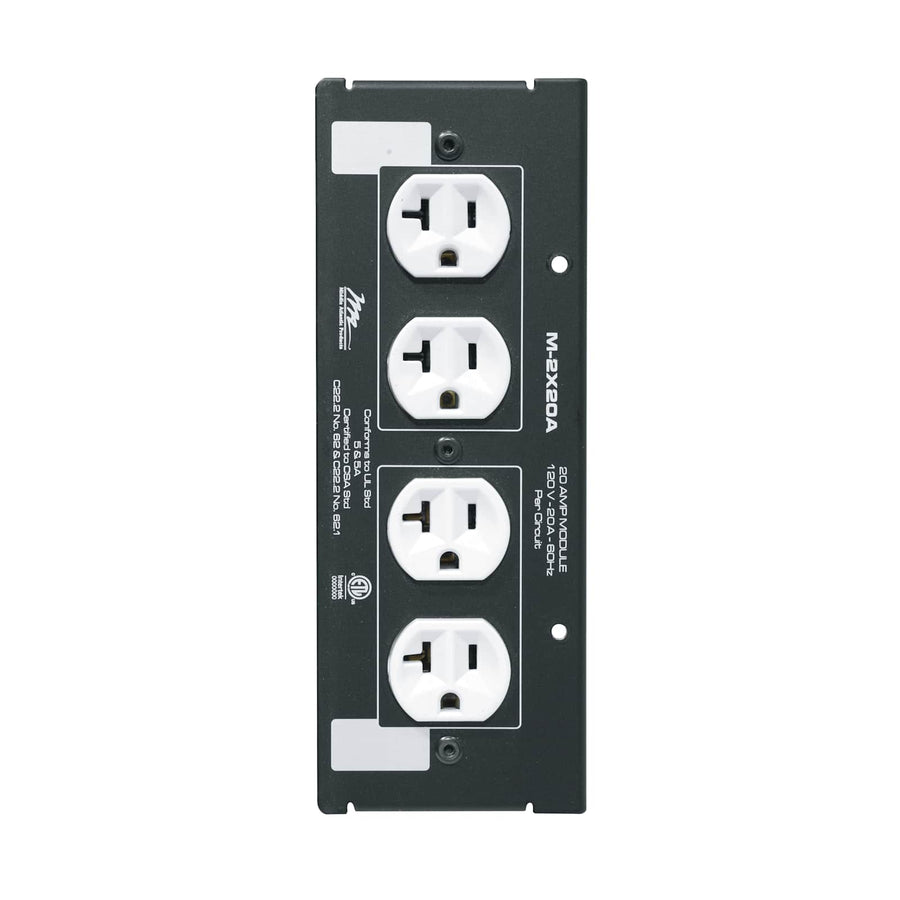

MPR Module, 20A, Double Duplex
Double duplex 20A MPR module with four 5-20R receptacles for custom power strip configuration
The M-2X20A is a 20 Amp, 120 VAC power module designed specifically for use within MPR Series raceways. This double duplex module provides four 5-20R receptacle outlets, allowing installers to customize power strip configurations to meet the specific requirements of a project. It features a unique genderless connector for 115V input power, facilitating easier integration within the modular system. Built with a steel construction and finished with a black textured powder coat, this module is engineered for durability in professional environments. As a TAA compliant component, it is suitable for government and high-security installations. This module is intended to work alongside other MPR Series components to create highly configurable, vertical power solutions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 8 in (20.3 cm) |
| Volts AC | 120 VAC |
| Isolated Ground | No |
| Number of Circuits | 2 |
| Outlet Count | 4 |
| Receptacle Type | 5-20R |
| Special Features | Configurable Power |
| UPC | 656747190636 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
What do I need to complete a custom power strip with the M-2X20A?
To build out your MPR Series raceway, you will need appropriate jumpers or tails, such as the J-12X6, J-24X6, or the T-24X6 connector tails.
Is the M-2X20A suitable for TAA compliant projects?
Yes, this module is TAA compliant, making it suitable for projects requiring specific procurement compliance.
How many outlets are provided by this module?
The M-2X20A provides 4 outlets through a double duplex 5-20R receptacle configuration.
Does this module work with any power strip?
No, this module is designed specifically for use within the MPR Series modular raceway systems.
What is the amperage rating for this MPR module?
The M-2X20A is rated for 20 Amp at 120 VAC.
