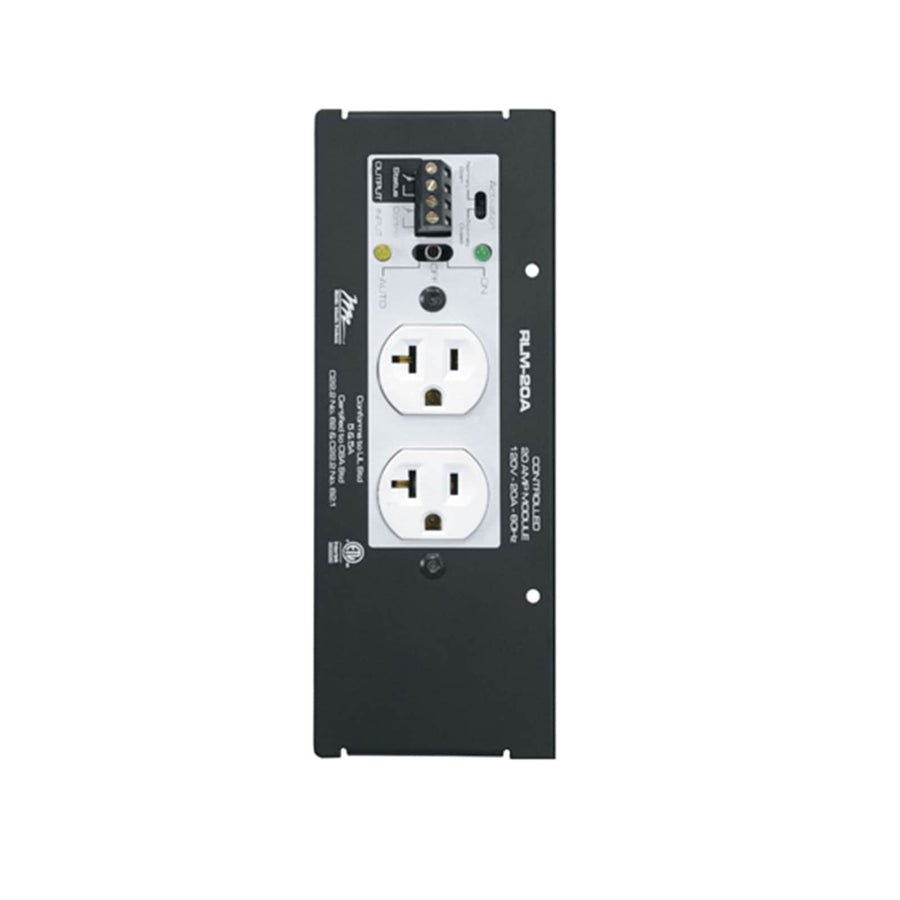

MPR Module, 20A Controlled
20A controlled MPR module for Middle Atlantic MPR raceways, providing 120 VAC power via corded connection
The RLM-20A is a 20A controlled module within the Middle Atlantic MPR series. This corded, 120 VAC power module is designed to fit directly into MPR raceways, offering a fast and flexible solution to power management challenges in professional AV installations. Featuring a single circuit and configurable power capabilities, this module provides controlled power distribution for integrated systems. To complete your installation within an MPR raceway system, you will need appropriate jumpers or tails, such as the JMS-12X6 12-inch jumper or the J-24X6 24-inch pre-terminated jumper. This ETL Recognized component is part of a modular system designed for efficient deployment and reliable power control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 8 in (20.3 cm) |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Volts AC | 120 VAC |
| Cable Type | Corded |
| Controlled | Yes |
| Isolated Ground | No |
| Number of Circuits | 1 |
| Special Features | Configurable Power |
| TAA Compliant | No |
| UPC | 656747190582 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Will the RLM-20A fit in my existing MPR raceway?
Yes, this RLM-20A module is specifically designed to fit within Middle Atlantic MPR raceways as part of the MPR Controlled Module series.
What accessories do I need to connect this module?
Depending on your setup, you may need jumpers or tails such as the JMS-12X6 12-inch jumper, J-24X6 24-inch jumper, or the T-24X6 24-inch connector-on-one-end tails.
Is the RLM-20A an isolated ground module?
No, this specific 20A module does not feature isolated ground.
What documentation is available for submittals?
Installers can refer to the MPR Series Modular Raceway System A&E Specification Sheet or the RLM Series Instruction Sheet for technical details and installation guidance.
How many circuits does this module support?
The RLM-20A is a single-circuit module providing 20 Amps of controlled 120 VAC power.
