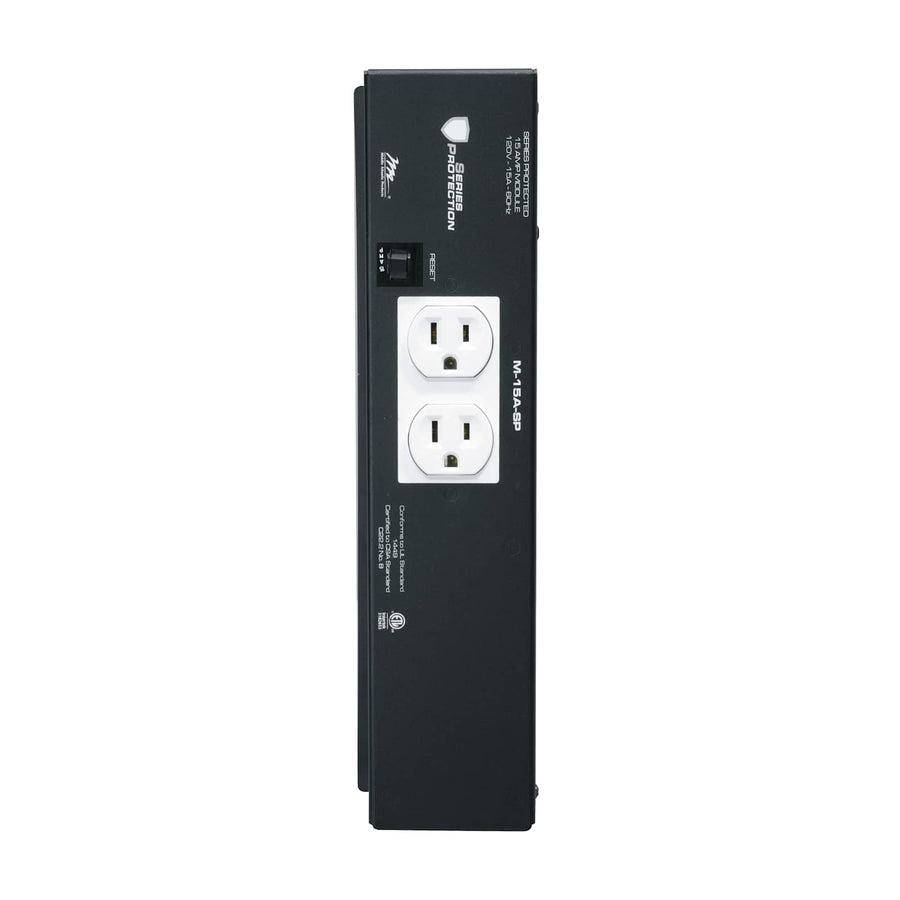

MPR Module, 15A, Duplex Series Surge
15A series surge protection module for Middle Atlantic MPR configurable vertical power raceway systems
The M-15A-SP is a Series Protection™ Modular Power Raceway module designed to integrate into the Middle Atlantic MPR configurable vertical power strip system. This 15A, 120 VAC module provides series-type, non-degrading surge protection to all cascading modules within a single circuit. Unlike standard modules, this component sits on top of the raceway channel, which allows for unobstructed connection to the termination and provides space for circuit wiring between modules. It is specifically designed for field-configurable strips and can be used to outfit currently installed “A” version MPR raceway systems. This ETL Recognized module offers a 12-year warranty and provides a way to protect all connected equipment in a rack via patented Series Protection™ technology.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 15 Amp |
| Shipping Weight | 3.4 lbs (1.5 kg) |
| Volts AC | 120 VAC |
| Controlled | No |
| Number of Circuits | 1 |
| Special Features | Configurable Power |
| Surge Protection Type | Series Protection |
| TAA Compliant | No |
| UPC | 656747215759 |
| Compliance | ETL Recognized |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
What does the M-15A-SP provide to my other MPR modules?
This module provides patented Series Protection™ to all cascading modules within each circuit, protecting all connected equipment.
Can I add this to an existing MPR installation?
Yes, currently installed “A” version MPR raceway systems can be outfitted with these Series Protection™ modules.
How does the module design affect wiring?
The module sits on top of the raceway channel, which allows for circuit wiring between modules and ensures unimpeded connection to the termination.
Does this module require a separate controller?
No, this specific SKU is not a controlled module.
Which document should I use for a project submittal?
The MPR Series Modular Raceway System A&E Specification Sheet can be used for submittals, and CAD Technical Specification Drawings are available for technical design.
