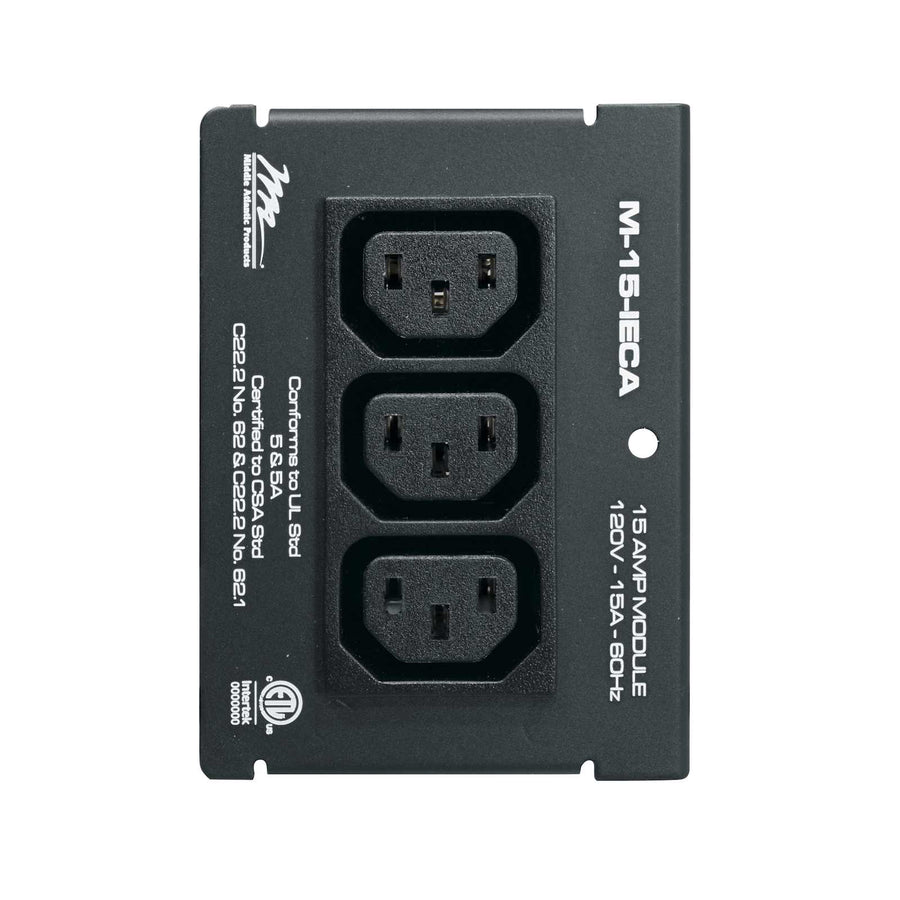

MPR Module, 15A, Duplex 3-Gang IEC
3-gang MPR module with three C-13 receptacles for custom 15A power strip configurations
The M-15-IECA is a 15A duplex 3-gang IEC module designed for use within the Middle Atlantic MPR Series raceway system. This configurable power module features three C-13 receptacle outlets, allowing installers to customize power strip layouts to meet specific project requirements. It operates on 120 VAC and connects via a unique genderless connector to the MPR Series raceway. The unit is constructed from steel with a black textured powder coat finish for durability in professional AV environments. This TAA compliant module is ETL Recognized and is intended for integration into modular power systems where specific outlet counts and types are required for equipment connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 15 Amp |
| Depth | 4 in (10.2 cm) |
| Volts AC | 120 VAC |
| Isolated Ground | No |
| Number of Circuits | 1 |
| Outlet Count | 3 |
| Receptacle Type | C-13 |
| Special Features | Configurable Power |
| UPC | 656747190551 |
| Compliance | ETL Recognized |
Resources
You'll need these with it
Questions about this part
Will this module work in my existing MPR raceway?
Yes, the M-15-IECA is specifically designed for use within Middle Atlantic MPR Series raceways.
What type of power outlets are provided by this module?
This module provides three C-13 receptacle outlets and is rated for 15 Amp at 120 VAC.
What additional components are needed to complete the power assembly?
To connect this module to your raceway, you may need jumpers or tails such as the J-12X6 12-inch pre-terminated jumper or the T-24X6 tails.
Is this product TAA compliant for government contracts?
Yes, the M-15-IECA is TAA compliant.
Which document should I use for installation and technical details?
For technical specifications and drawings, refer to the MPR Series Modular Raceway System CAD Technical Specification Drawings or the MPR Series A&E Specification Sheet.
