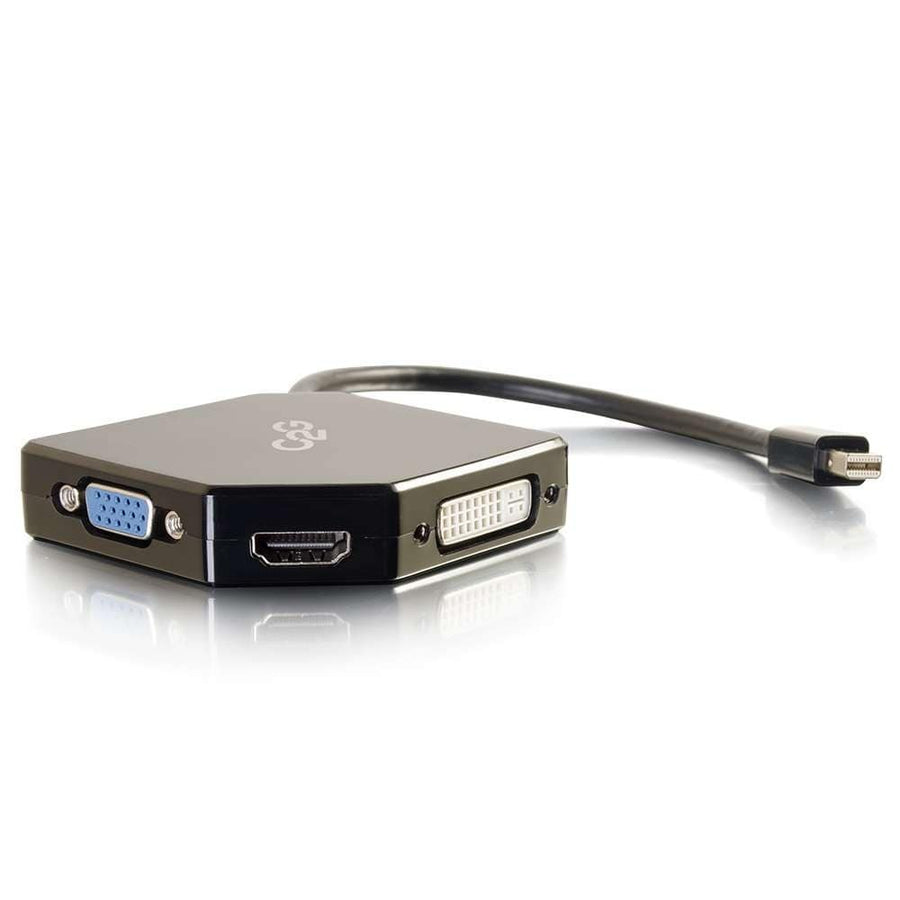

Mini DisplayPort to HDMI, VGA, or DVI Adapter Converter
3-in-1 Mini DisplayPort adapter for HDMI, VGA, or DVI connections, supporting up to 4K at 30Hz via HDMI
The CG54341 is a versatile 3-in-1 adapter designed to facilitate video output from devices featuring a Mini DisplayPort or Thunderbolt 2 port, such as Microsoft® Surface® products and various laptops, to a wide range of displays. This compact converter allows an installer or user to connect a single source to a projector, monitor, or HDTV regardless of whether the input is HDMI, VGA, or DVI. Because this is an all-in-one solution, it is highly effective in BYOD (Bring Your Own Device) environments like conference rooms or classrooms where display inputs vary between meetings. The dongle-style design includes a 5.5 mm cable between the Mini DisplayPort connection and the adapter body, which provides essential strain relief to protect the device's physical port from damage when cables are moved. This is a plug-and-play device that draws power directly from the Mini DisplayPort bus, meaning no external power supply is required for operation. Note that this converter can output to one video port at a time and does not support simultaneous multi-video output.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) Mini DisplayPort Male(1) Mini DisplayPort Male |
| Connector 2 | (1) DVI Female(1) DVI Female(1) HDMI Female(1) HDMI Female(1) VGA Female(1) VGA Female |
| TAA Compliant | No |
| UPC | 757120543411 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
| Cable Diameter | 5.5 mm |
Resources
Questions about this part
Will the CG54341 work with my Microsoft Surface?
Yes, this adapter is specifically designed for use with Microsoft® Surface® products and other laptops that utilize Mini DisplayPort or Thunderbolt 2 outputs.
Can I connect two monitors at the same time with this adapter?
No, this adapter is designed to output a signal to only one video port at a time; it does not support simultaneous multi-video output.
What is the maximum resolution for the HDMI connection?
When using the HDMI connection, this adapter supports a maximum resolution of 3840 x 2160 at 30Hz.
Do I need to install any software or drivers for this converter?
No, this is a plug-and-play device that does not require driver installation and is powered directly through the Mini DisplayPort bus.
Does this adapter require an external power source?
No, the device is powered through the Mini DisplayPort bus power, so no additional power adapters are necessary for use.
