LundHalsey x-Type Broadcast Air Console, Large
Large electric sit/stand broadcast console with 83"W worksurface, 9RU rackmount capacity, and TAA compliance

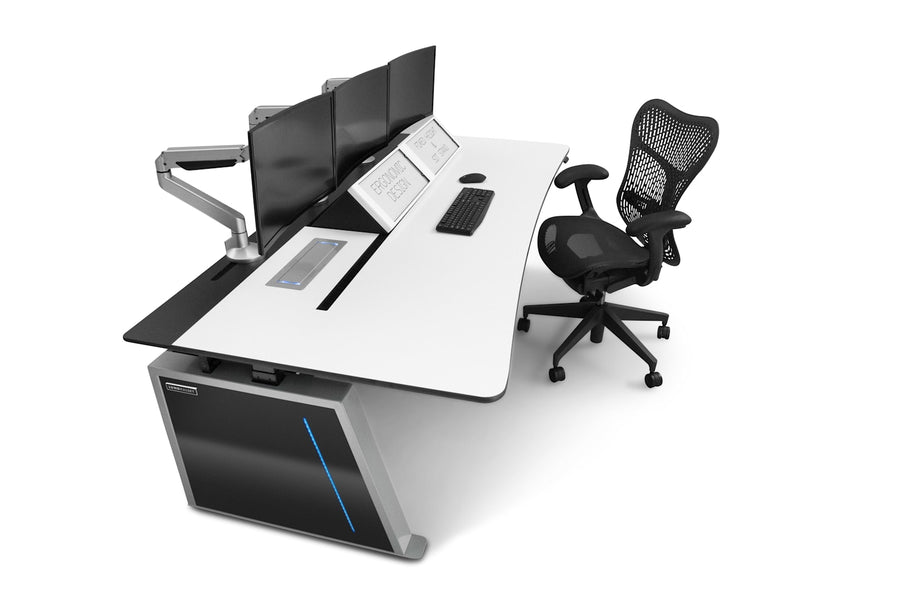

The LundHalsey x-Type Broadcast Air Console, Large (LH-XTCLHS) is an electrically adjustable workstation designed for high-stakes command and control environments, including AV control rooms, Security Operation Centres (SOC), and Network Operation Centres (NOC). This TAA compliant console features an electric lift system that allows for seamless sit/stand transitions between a height of 26" to 47". The 83"W x 39"D worksurface is constructed from durable high pressure compact laminate designed for 24/7/365 continuous operation and can accommodate up to three operators. This large-format model includes 9RU of integrated rackmount space with cage nut rail types, providing both front and rear access to active equipment. For streamlined cable management, the unit features multiple integrated channels across the width and height of the frame and dedicated cable pass-thru slots on the rear worksurface. The design follows ISO 11064 ergonomic standards and is available in a Black/Silver/Gray frame with a White worksurface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 39.4 in (100.1 cm) |
| Height | 26 to 47 |
| Product Weight | 561 lbs (254.5 kg) |
| Rack Units | 9 RU |
| Weight Capacity | 396 lbs (179.6 kg) |
| Width | 83 in (210.8 cm) |
| Available Internationally | Yes |
| Color | Black/Silver/Gray (Frame) White (Worksurface) |
All other specifications 9
| Electric Lift | Yes |
| Federal Ops Country of Origin | United Kingdom |
| Height Adjustable | Yes |
| Monitor Mounting | Yes |
| Number of Displays | 3 |
| Rack Rail Type | Cage Nut |
| Ships Flat | Yes |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
What is the height adjustment range for the LH-XTCLHS console?
The electric lift system allows the console to adjust from a height of 26" to 47".
Can I add additional rackmount equipment to the worksurface?
Yes, this console provides provisions for optional LH-XTAT4RU 4RU Pods to allow for rackmounting equipment directly at the worksurface.
What are the dimensions of the worksurface on this large model?
The worksurface measures 83"W x 39"D and is built to withstand continuous 24/7/365 use.
How much equipment can the integrated rack space hold?
The console includes 9RU of rackmount space with cage nut rail types and provides both front and rear access for servicing equipment.
Is this console suitable for federal government installations?
Yes, the LH-XTCLHS is TAA compliant and manufactured in the United Kingdom.
