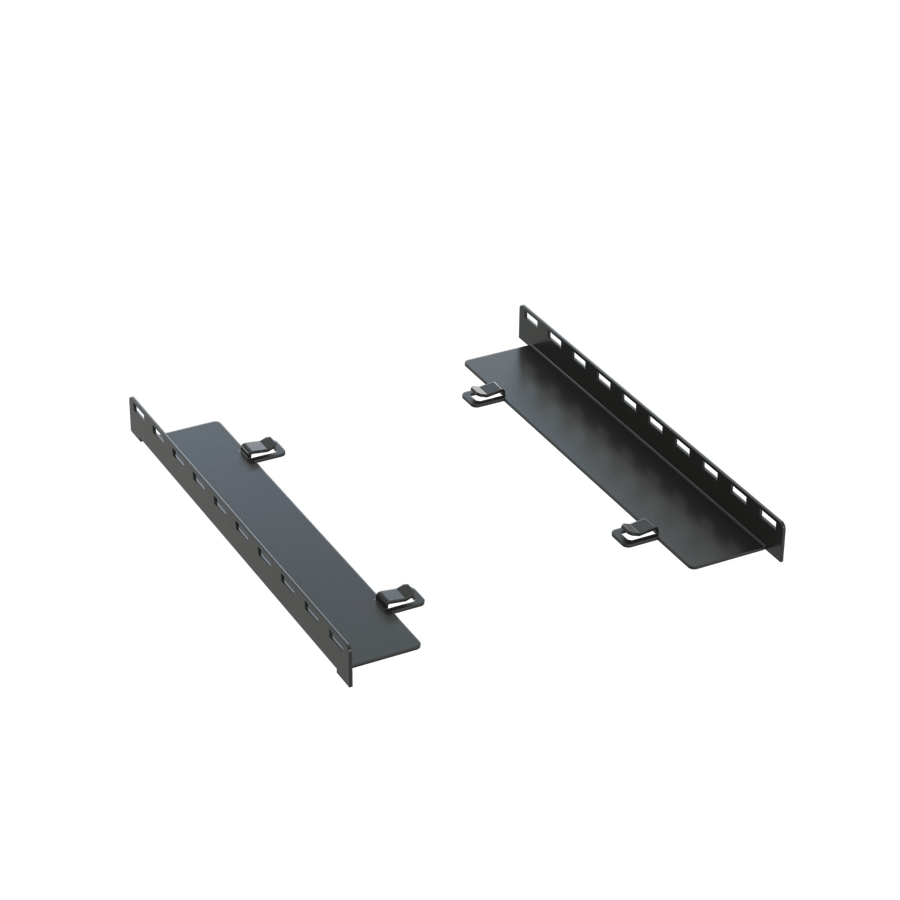

Lever Lock Back Pan Kit for DWR and SR
Middle AtlanticLever Lock Back Pan Kit for DWR and SR

Lever Lock Back Pan Kit for DWR and SR

LL-DWR/SR-BP
TAA COMPLIANTIN STOCK

Steel back pan kit for DWR and SR Series racks, allows mounting small devices in the back pan space

The LL-DWR/SR-BP is a steel back pan kit designed for use with Middle Atlantic DWR and SR Series Wall Racks. This kit is intended to expand mounting options by allowing installers to secure small devices within the back pan area, effectively utilizing previously unused space. The kit consists of a pair of brackets that can be rotated to accommodate different plate sizes. To complete the installation of a device, these brackets must be paired with either an LL-VP1710 or an LL-VP2110 Lever Lock Vertical Plate, which are sold separately. These brackets are engineered for efficiency, mounting directly into the existing cable tie-off bridge lances within the back pans to act as installation time savers.

No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.

Key features

·Designed for use with DWR and SR Series Wall Racks·Steel construction for durable device support·Includes a pair of brackets that mount into existing cable tie-off bridge lances·Brackets can be rotated to fit either the LL-VP1710 or LL-VP2110 plates·TAA Compliant

Specifications

5 fields
Shipping Weight1 lbs (0.5 kg)
Base SeriesDWR or SR
MaterialSteel
Special FeaturesInstallation Time Savers
UPC656747389603

You'll need these with it

2 compatible parts

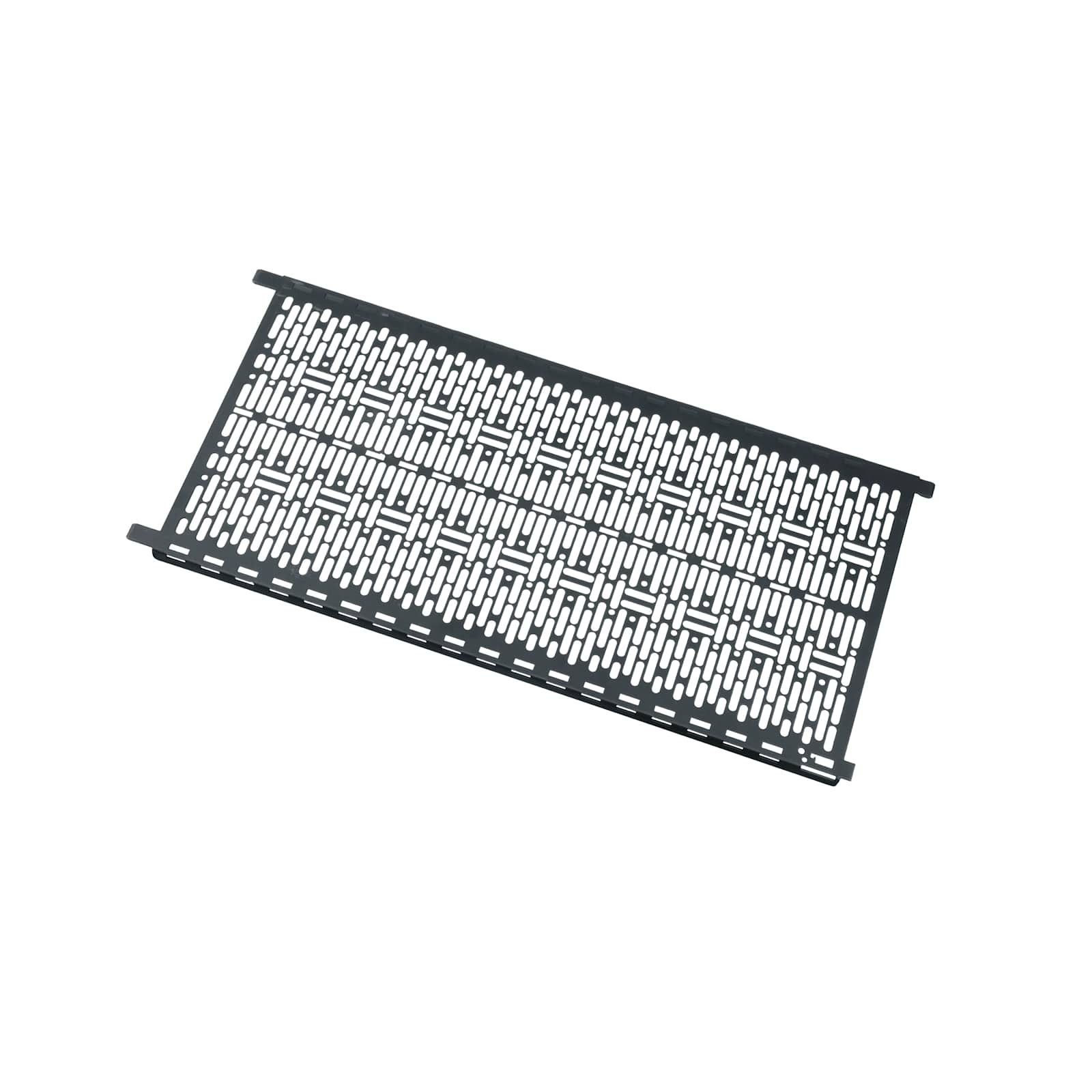

Lever Lock Vertical Plate 13.6 Inches High, 10 Inches Wide LL-VP1710$46.80 Lever Lock Vertical Plate 17.1 Inches High, 10 Inches Wide LL-VP2110$53.10

Questions about this part

What do I need to buy to use this kit with a device?

This kit provides the brackets, but you must also purchase the specific Lever Lock Vertical Plate required for your device, such as the LL-VP1710 or LL-VP2110.

Will this work in my DWR or SR series wall rack?

Yes, the LL-DWR/SR-BP is specifically designed to mount into the cable tie-off bridge lances of Middle Atlantic DWR and SR Series Wall Racks.

How do I know which vertical plate to use with these brackets?

The brackets included in this kit are rotatable, allowing them to accept either the LL-VP1710 or the LL-VP2110 Lever Lock Vertical Plates.

What is the primary purpose of the LL-DWR/SR-BP kit?

It allows installers to mount small hardware in the back pan area of the rack, making use of the extra space behind the main equipment.

Is this product TAA compliant?

Yes, the LL-DWR/SR-BP is TAA compliant.
