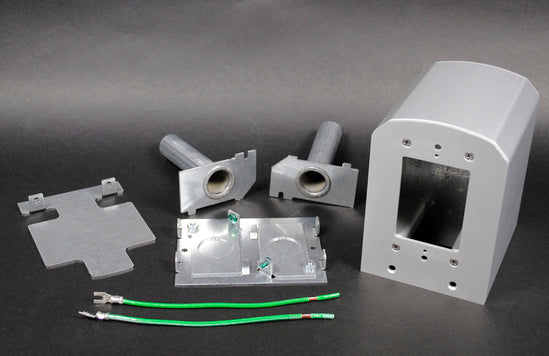

LBP2 Lab Bench Pedestal
Aluminum lab bench pedestal with a configurable steel base for various conduit and power outlet configurations
The LBP2 is a Lab Bench Pedestal designed for integration into professional laboratory or industrial work surfaces. It features an aluminum housing with side plates and a steel base and divider, measuring 4'' x 5'' x 5 5/8''. The base is field-configurable, allowing installers to choose between using two 3/4'' knockouts or two 3/4'' EMT stubs to facilitate conduit connection. This pedestal is listed for work surfaces and meets UL514A requirements for metallic outlet boxes. For communications and A/V needs, it can be paired with Wiremold AVIP. This unit accommodates several outlet types, including duplex, decorator, GFCI, and up to 30A twist lock, though receptacles and wall plates must be purchased separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of outlets can I install in the LBP2?
The pedestal accommodates a variety of configurations, including decorator, duplex, GFCI, and up to 30A twist lock receptacles.
Does the LBP2 include the faceplate and receptacles?
No, the LBP2 pedestal does not include receptacles or wall plates; these components are sold separately.
How do I connect conduit to the base of the pedestal?
The steel base is field-configurable to allow for either two 3/4'' knockouts or two 3/4'' EMT stubs.
Can I use this for A/V and data cabling?
Yes, you can use Wiremold AVIP to provide communications and A/V support within the pedestal.
Is this pedestal suitable for laboratory environments?
Yes, it is listed for use on work surfaces and meets UL514A standards for metallic outlet boxes.
