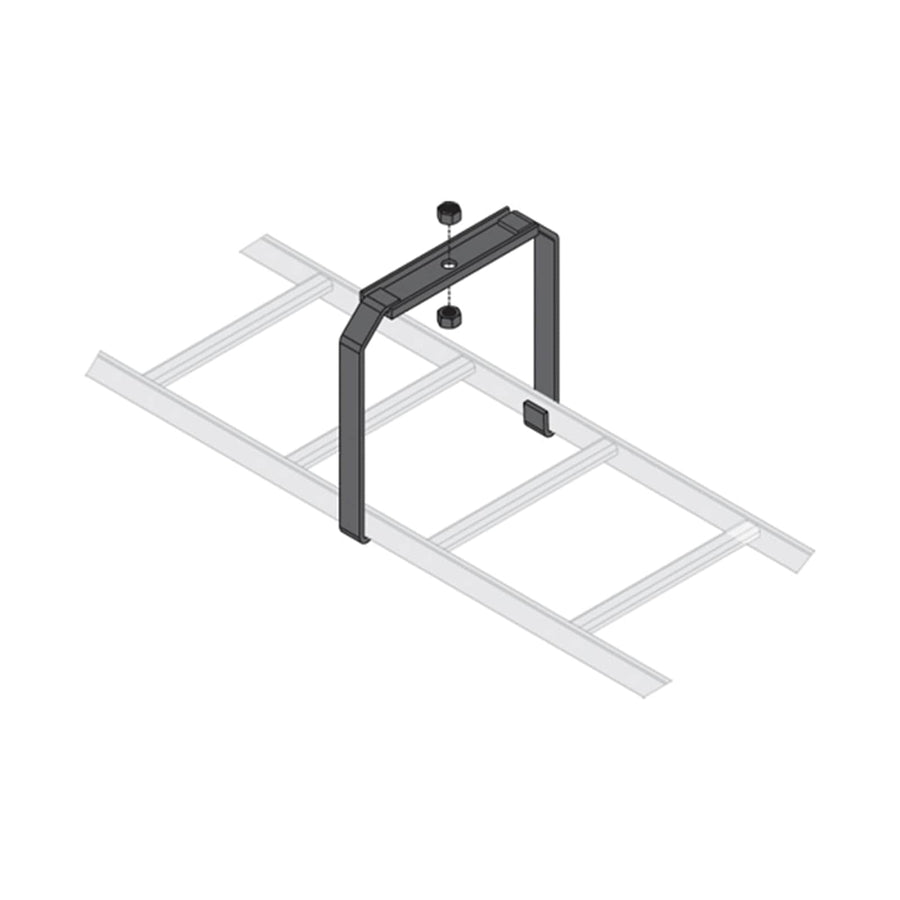

Ladder Center Support Bracket, 18 Inches Wide
18.5 inch wide center support bracket for cable ladders, featuring robust steel construction with a black finish
The CLB-CSB-W18 is a center support bracket designed for cable ladder systems. This component is engineered to provide structural stability for cable runs in both new and existing installations. It features a robust steel construction finished in black zinc to ensure durability in professional environments. Measuring 18.5 in (47 cm) in width, this 2 in (5.1 cm) deep bracket provides the necessary support to maintain the integrity of the ladder system. This specific model belongs to the Cable Ladder Series, which includes different width options such as 12 in and 24 in variants to suit various ladder dimensions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 2 in (5.1 cm) |
| Height | 12.36 in (31.4 cm) |
| Package Count | 1 |
| Width | 18.5 in (47 cm) |
| Component Type | Cable Ladder |
| UPC | 656747114847 |
Resources
Questions about this part
Will the CLB-CSB-W18 work with my current cable ladder system?
Yes, this bracket is designed to be compatible with most popular ladder brands and accessories for both new and existing installations.
What are the dimensions of this center support bracket?
The CLB-CSB-W18 has a width of 18.5 in (47 cm), a height of 12.36 in (31.4 cm), and a depth of 2 in (5.1 cm).
Are there other width options available for this series?
Yes, this ladder center support bracket is part of a series that includes 12 in and 24 in width options.
What is the finish on the CLB-CSB-W18?
The bracket is made of steel with a black zinc finish.
Which documentation is available for submittals?
Technical drawings and specification sheets are available, including CAD technical specification drawings (dwg) and Revit models (rfa).
