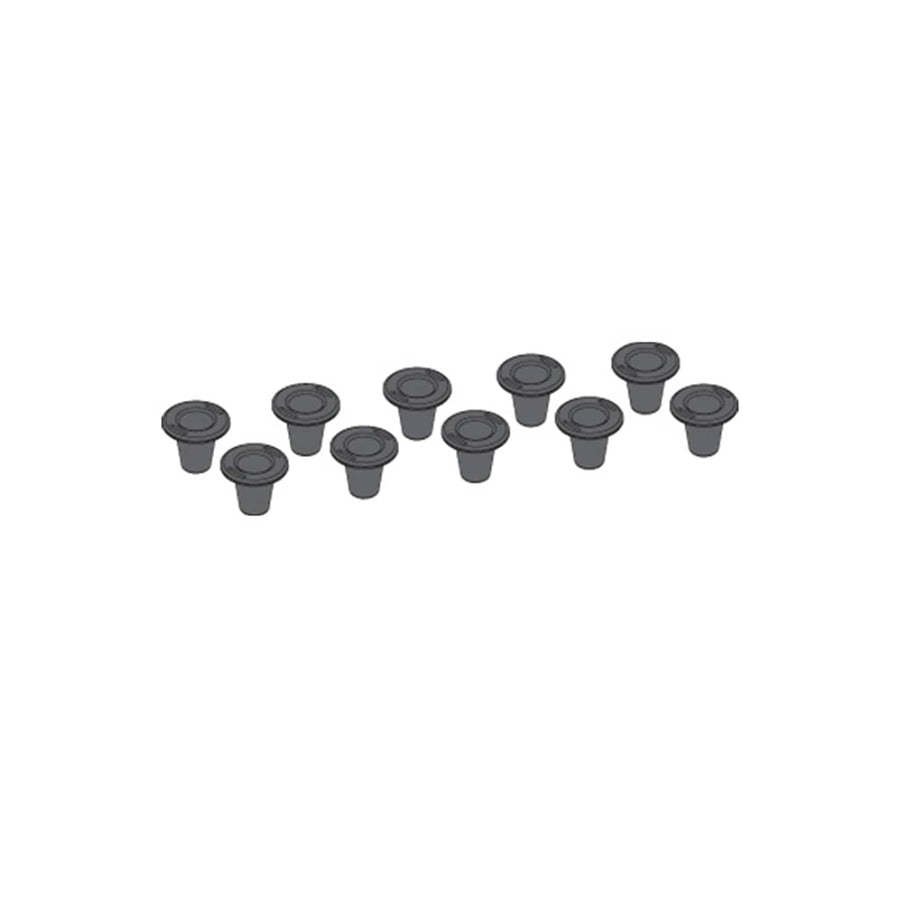

Ladder Cable Mgmt Spools - 10 Piece
Black plastic spools in a 10-piece pack for managing cable drops on ladder systems
The CLH-SPOOL-10 is a 10-piece pack of black plastic spools designed for Middle Atlantic cable ladder systems. These components are specifically used to facilitate side and end cable drops, providing a structured way to organize cabling as it transitions from the ladder to the equipment or connection point. Each spool features a profile of 1.9 in (4.8 cm) in width and depth, with a height of 1.6 in (4.1 cm). By installing these spools, integrators can manage cable routing more effectively, ensuring that drops remain organized and protected within the ladder framework. This 10-piece package provides the necessary quantity for multiple installation points within a single rack or cable ladder assembly.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.9 in (4.8 cm) |
| Height | 1.6 in (4.1 cm) |
| Package Count | 1 |
| Width | 1.9 in (4.8 cm) |
| Component Type | Cable Ladder |
| UPC | 656747040894 |
Resources
Questions about this part
What is the purpose of the CLH-SPOOL-10 in a cable ladder system?
These spools are used to organize cable drops, specifically at the sides and ends of the ladder system.
How many spools are included in this specific part number?
The CLH-SPOOL-10 comes as a single package containing 10 individual spools.
What are the dimensions of a single spool?
Each spool has a width of 1.9 in (4.8 cm), a depth of 1.9 in (4.8 cm), and a height of 1.6 in (4.1 cm).
What material are these cable management spools made of?
These Middle Atlantic spools are constructed from black plastic.
Can I get technical drawings for submittals?
Yes, 3D CAD drawings, Revit models, and CAD technical specification drawings are available in the Resources tab.
