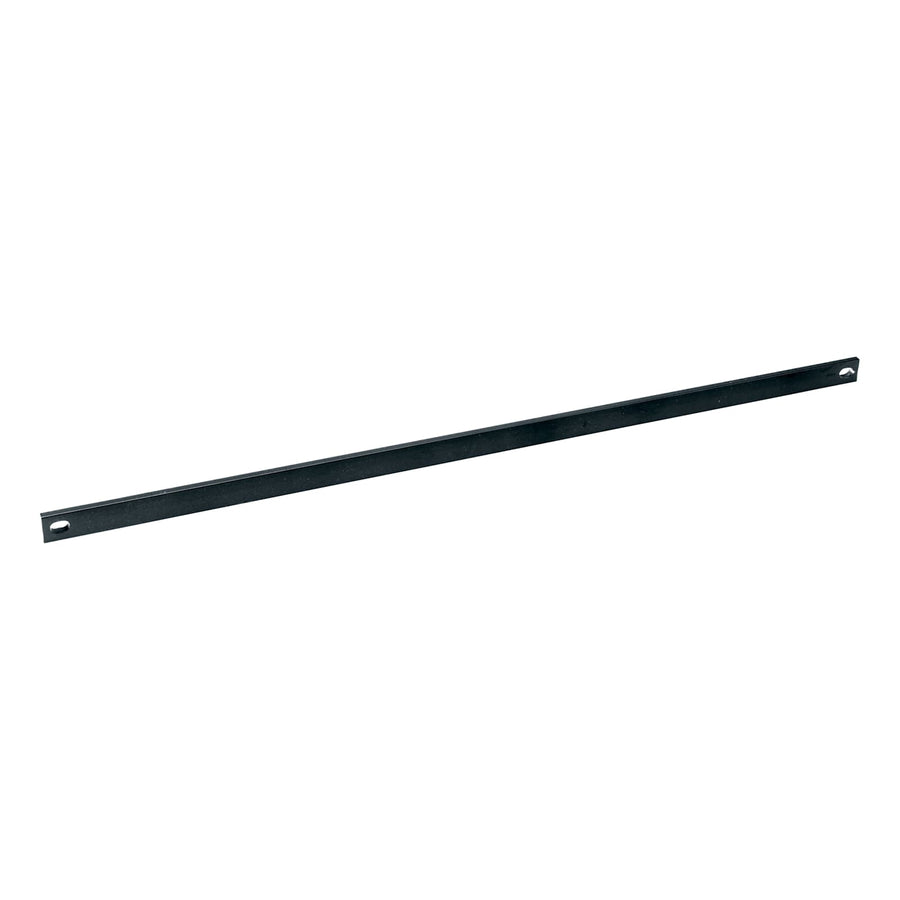

Lace Bar Square - 10 Pieces
Square aluminum lacer bar for horizontal or vertical cable management and equipment support, sold in a 10-piece pack
The LBP-1S is a square-style lace bar designed for organizing cables both horizontally and vertically within a rack. These bars are constructed from 3/16" thick aluminum and feature a 1/4" diameter rod with flattened ends. The flat style and 0° offset angle allow for a low-profile installation, with a depth of 0.19 in (0.5 cm) and a height of 0.25 in (0.6 cm). Because of the aluminum construction, installers have the ability to drill custom holes to attach tie saddles or mount electrical boxes directly to the bar. Beyond simple cable lacing, these rods can also be utilized to provide structural support to the rear of equipment. This SKU is sold as a pack of 10 pieces, providing an economical solution for large-scale cable management tasks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.19 in (0.5 cm) |
| Height | 0.25 in (0.6 cm) |
| Offset Angle | 0⁰ |
| Package Count | 10 |
| Shipping Weight | 2.2 lbs (1 kg) |
| Width | 19 in (48.3 cm) |
| Component Type | Horizontal |
| Mounting Points | 2 |
| Offset | 0 in (0 cm) |
| Style | Flat |
| UPC | 656747031687 |
Questions about this part
How many lace bars are included in this SKU?
This LBP-1S SKU is sold as a package containing 10 pieces.
Can I customize the placement of cable ties on these bars?
Yes, the aluminum construction allows you to drill holes to attach tie saddles or mount electrical boxes.
What are the physical dimensions of the LBP-1S?
Each bar is 19 in (48.3 cm) wide, 0.25 in (0.6 cm) high, and 0.19 in (0.5 cm) deep.
Is this product TAA compliant?
Yes, the LBP-1S is TAA compliant.
What can be used for cable support with these bars?
The rods can be used for horizontal or vertical lacing, or to support the rear of equipment in a rack.
