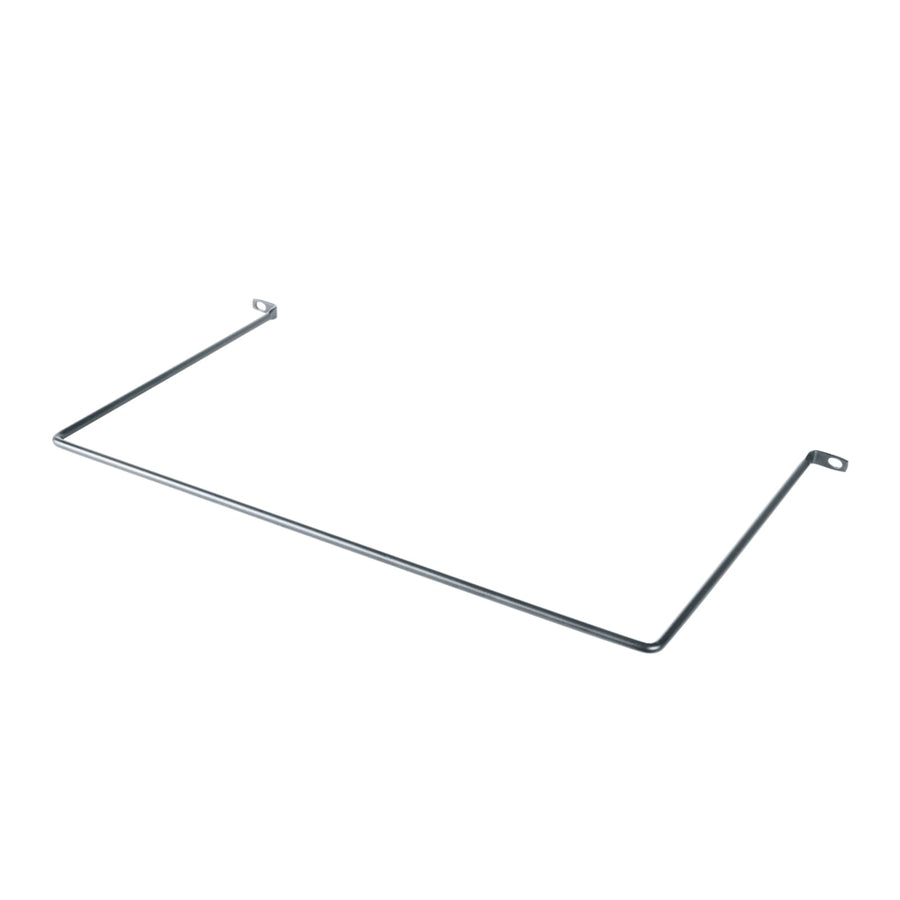

Lace Bar 10 Inch Offset, 90° Round Bend - 10 Pieces
10-pack of 10-inch offset round lacer bars featuring 90° bends for full-width support and component clearance
The LBP-10R90 provides an economical solution for horizontal cable lacing and support within a rack environment. These round rod style bars feature a 10 in (25.4 cm) offset and a 90° bend designed to provide full-width support for cable management. This specific geometry allows installers to create necessary clearance around components that extend past the 16-5/8" open width of the rear rackrail. Each bar is constructed from a 1/4" diameter rod with flattened ends for secure installation. These bars are sold in packs of 10 pieces, making them a scalable option for large-scale deployments. The LBP-10R90 is TAA compliant, ensuring it meets specific procurement requirements for government and certain commercial projects. Its 19 in (48.3 cm) width and 0.4 in (1 cm) height allow for efficient integration into standard rack layouts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 0.4 in (1 cm) |
| Offset Angle | 0⁰ |
| Package Count | 10 |
| Shipping Weight | 5.4 lbs (2.5 kg) |
| Width | 19 in (48.3 cm) |
| Component Type | Horizontal |
| Mounting Points | 2 |
All other specifications 5
| Offset | 10 in (25.4 cm) |
| Style | Round |
| TAA Compliant | Yes |
| UPC | 656747118623 |
| Certifications | TAA |
Questions about this part
How do the 90° bends on the LBP-10R90 affect installation?
The 90° bends enable the bar to provide full-width support and help create clearance for components that extend beyond the 16-5/8" open width of the rear rackrail.
What is the rod diameter for these lacer bars?
These bars consist of a 1/4" diameter rod that features flattened ends for mounting and support.
Is the LBP-10R90 TAA compliant?
Yes, this product is TAA compliant and meets the necessary requirements for specific procurement standards.
How many lacer bars are included in a single order of LBP-10R90?
A single order of the LBP-10R90 comes as a package containing 10 pieces.
What is the dimension of the offset on these bars?
Each bar in this series provides a 10 in (25.4 cm) offset to assist with cable routing and component clearance.
