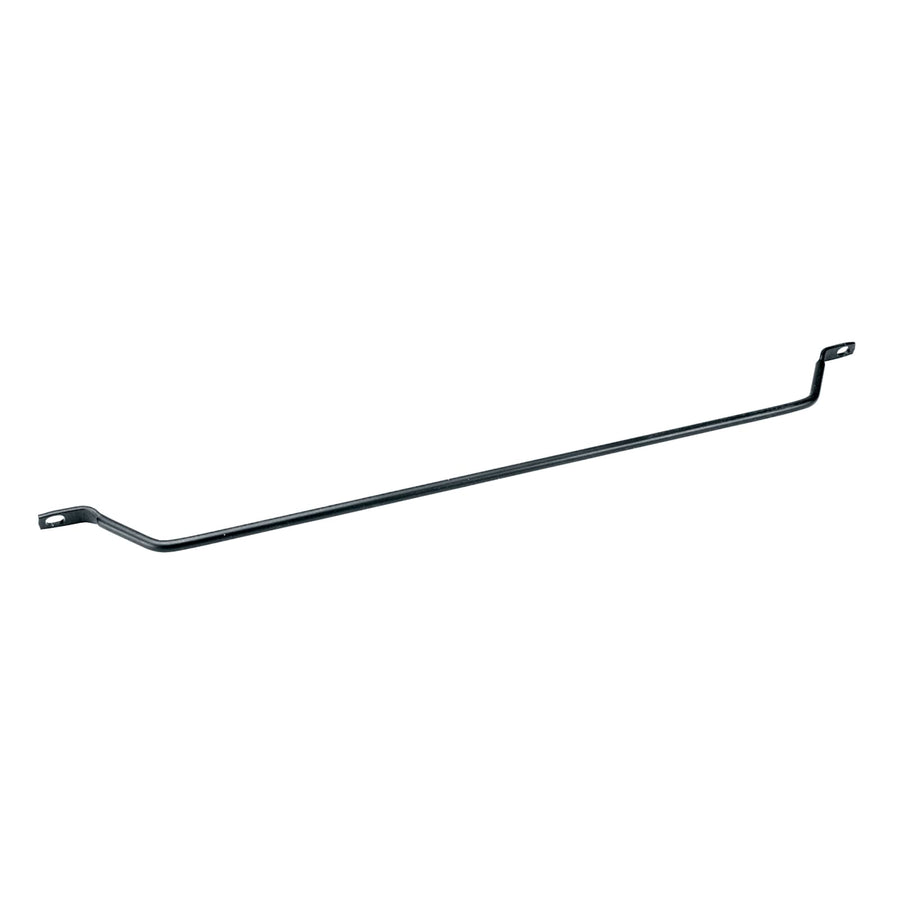

Lace Bar 1.5 Inch Offset, Round - 10 Pieces
Round 1.5 in (3.8 cm) offset lacer bar pack of 10, providing 49° angled support for cable bundles.
The Middle Atlantic LBP-1.5 provides an economical solution for managing small cable bundles or individual cables behind equipment. These round style lacer bars feature a 1.5 in (3.8 cm) offset and a 49° offset angle, allowing you to manage cable paths effectively from the rear of patch panels, components, or other rack-mounted gear. By lacing cables to these bars, installers can significantly relieve physical stress on connections. This specific model is a 19 in width component designed for horizontal mounting with 2 mounting points. This is a 10-piece pack, making it suitable for large-scale deployments where consistent cable support is required across multiple rack units. The bars utilize a 1/4" diameter rod design with flattened ends to facilitate secure lacing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 0.4 in (1 cm) |
| Offset Angle | 49⁰ |
| Package Count | 10 |
| Shipping Weight | 2.75 lbs (1.3 kg) |
| Width | 19 in (48.3 cm) |
| Component Type | Horizontal |
| Mounting Points | 2 |
| Offset | 1.5 in (3.8 cm) |
| Style | Round |
| TAA Compliant | Yes |
| UPC | 656747035302 |
| Certifications | TAA |
Questions about this part
What is the purpose of the LBP-1.5 lace bar?
The LBP-1.5 is used to lace small bundles or individual cables off the rear of equipment and patch panels to relieve cable stress from the connections.
How many lace bars are included in one order of LBP-1.5?
Each LBP-1.5 package contains 10 pieces of the round 1.5 in offset lacer bar.
What are the dimensions of the LBP-1.5?
Each bar has a 19 in (48.3 cm) width, a 0.4 in (1 cm) height, and a 1.5 in (3.8 cm) offset.
Is this product TAA compliant?
Yes, the LBP-1.5 is TAA compliant.
How does the LBP-1.5 differ from other Lace Bars in this series?
The LBP-1.5 is defined by its 1.5 in (3.8 cm) offset and 49° angle; other versions in the series offer different offset lengths.
