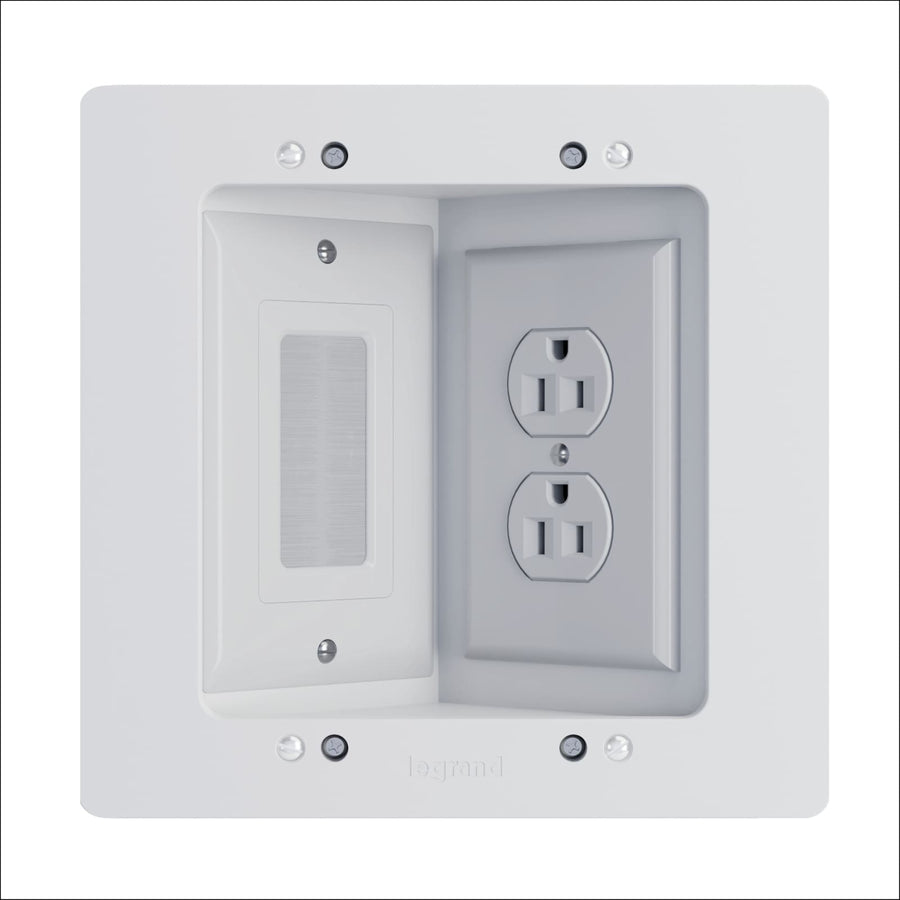

In-Wall TV Connection Kit - New Construction/Retrofit (with outlet)
In-wall kit for recessed power and AV connectivity, featuring a tamper-resistant 5-15R outlet and brush plate for flush TV mounting
The On-Q HT2302KWH is an in-wall TV connection kit designed to provide both power and Class 2 low voltage connectivity behind a wall-mounted television. By housing power and AV cables inside the wall, this kit allows displays to sit flush against the wall for a clean, professional appearance. The kit is versatile enough for different installation scenarios: it can be mounted directly to a wall stud during new construction or secured to drywall in retrofit applications using the included wing clamps. The kit fits into a standard 2x4 wall and is rated for wall thicknesses up to 1 in. For low voltage management, the box features concentric knockout rings that support flexible conduit connections. This complete solution includes a 1 Gang old-work junction box with a tamper-resistant 5-15R receptacle and a cable access brush strap to manage various media connections.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8.37" x 3.8" x 8.7" (212.6 x 96.6 x 221 mm) |
| Color | White |
| Finish | Glossy |
| Material | Plastic |
| Number of Receptacles | 1 |
| Receptacle Type | 5-15R |
| Special Features | Includes Outlet and Brush Plate |
| Warranty | 5-Year |
Resources
Questions about this part
Will the HT2302KWH fit my wall thickness?
The kit is designed for standard 2x4 walls and supports a maximum wall thickness of 1 in.
Can this kit be used for both new construction and existing walls?
Yes, you can mount the recessed TV box directly to a wall stud for new construction or use the integrated wing clamps to secure it to drywall for retrofit installs.
What is the best way to manage low voltage cables with this kit?
The low voltage side of the box includes concentric knockout rings, allowing you to use flexible conduit for organized cable management.
What type of electrical outlet is included in the HT2302KWH?
This kit includes one 5-15R tamper-resistant receptacle for powering devices like TVs, soundbars, or streaming players.
Where can I find the installation manual for this kit?
You can access the HT2302 In-Wall TV Connection Kit Installation Manual (PDF) in the resources section for detailed mounting and wiring instructions.
