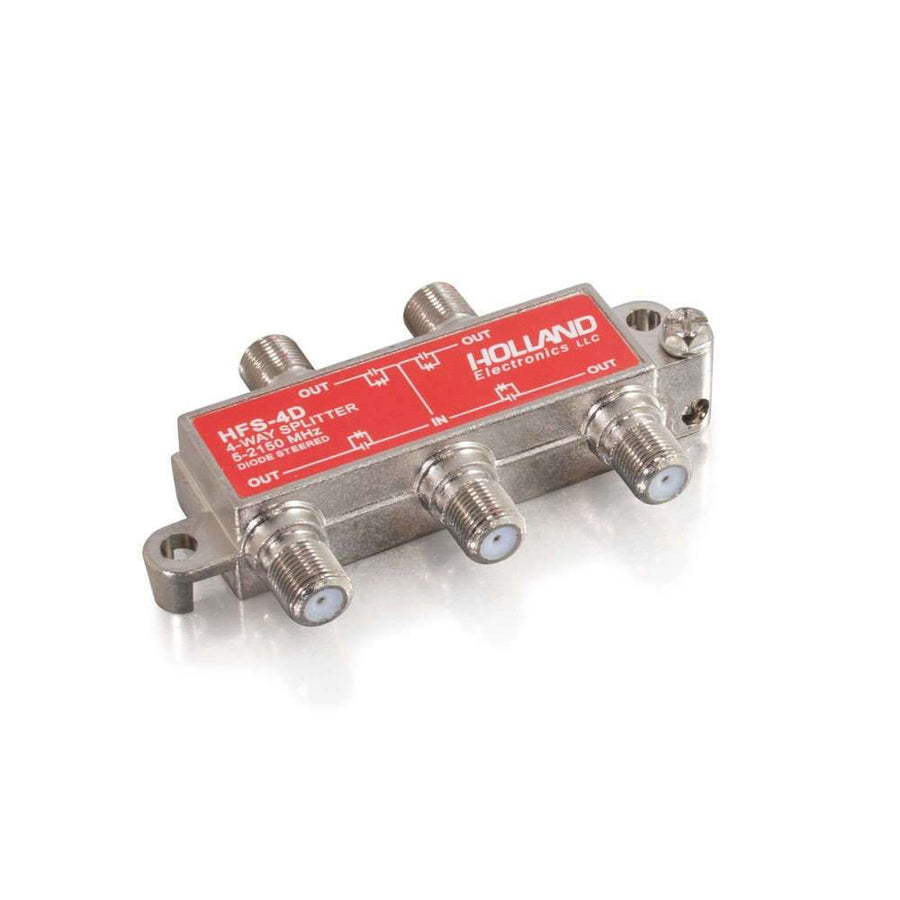

High-Frequency 4-Way Splitter
High-frequency 4-way splitter supporting 15 to 2,150 MHz for digital cable, broadcast, and satellite distribution
The CG41022 is a high-frequency 4-way splitter designed for distributing digital broadcast television, digital cable television, off-air antennas, and satellite signals. Operating across a frequency range of 15 to 2,150 MHz, this unit is suitable for various modern signal types. The zinc-plated, die-cast housing features precision-machined ports and a soldered back, providing 140 dB isolation against RF leakage. Using PC board technology, the splitter eliminates low-frequency hum to reduce noise while providing a clean, stable return path for data from cable modems or cable boxes. This component is DC-passive, making it compatible with devices that require DC power, such as DBS dishes and amplified antennas.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Color | Red |
| Connector 1 | (1) F-Type Female |
| Connector 2 | (4) F-Type Female |
| Product Type | Splitter |
| TAA Compliant | No |
| UPC | 757120410225 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
What frequency range does the CG41022 cover?
The CG41022 supports a frequency range from 15 to 2,150 MHz for digital broadcast, cable, and satellite signals.
Can this splitter be used with amplified antennas?
Yes, because this is a DC-passive splitter, it is compatible with devices that require DC power, such as DBS dishes and amplified antennas.
What type of connectors are used on this splitter?
This splitter features one F-Type Female input and four F-Type Female outputs for signal distribution.
How does this splitter handle data return paths for cable modems?
The internal PC board technology provides a clean and stable return path for data coming from a cable modem or cable box.
What is the RF leakage isolation rating for this unit?
The zinc-plated, die-cast housing provides 140 dB isolation against RF leakage.
