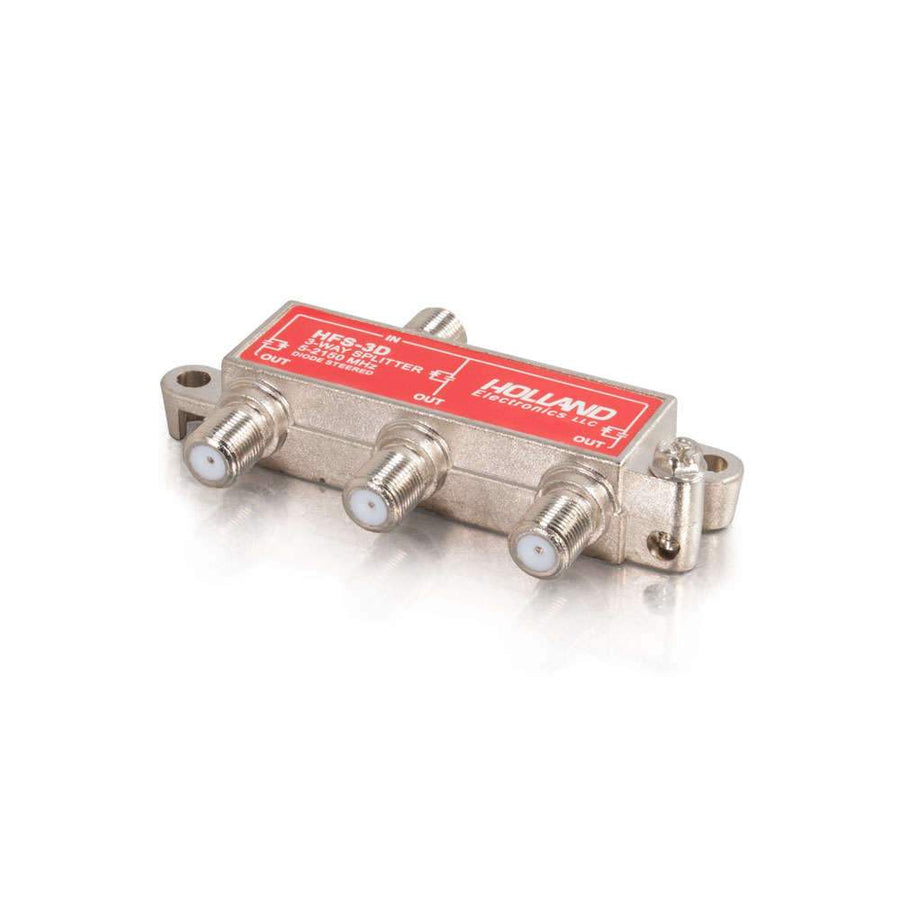

High-Frequency 3-Way Splitter
High-frequency 3-way splitter for digital broadcast, cable, or satellite distribution from 15 to 2,150 MHz
The C2G CG41021 is a high-frequency 3-way splitter designed for distributing signals across digital broadcast television, digital cable television, off-air antennas, and satellite systems. It supports frequencies ranging from 15 to 2,150 MHz. The unit features a zinc-plated, die-cast housing equipped with precision-machined ports and a soldered back, providing 14 dB isolation against RF leakage. To minimize noise, the internal PC board technology eliminates low-frequency hum and establishes a clean, stable return path for data from cable modems or cable boxes. This splitter is DC-passive, making it suitable for use with devices that require DC power, such as DBS dishes or amplified antennas.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Color | Red |
| Connector 1 | (1) F-Type Female(1) F-Type Female |
| Connector 2 | (2) F-Type Female(3) F-Type Female |
| Product Type | Splitter |
| TAA Compliant | No |
| UPC | 757120410218 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
What is the frequency range of the CG41021 splitter?
This splitter supports signal distribution from 15 to 2,150 MHz.
Can I use this splitter with amplified antennas or DBS dishes?
Yes, the CG41021 is DC-passive, which allows it to work with devices that require DC power.
Is this splitter suitable for satellite and digital cable television?
Yes, it is compatible with digital cable television, digital broadcast television, and satellite distribution.
How does the housing design prevent signal interference?
The zinc-plated, die-cast housing and precision-machined ports provide 14 dB of isolation against RF leakage.
