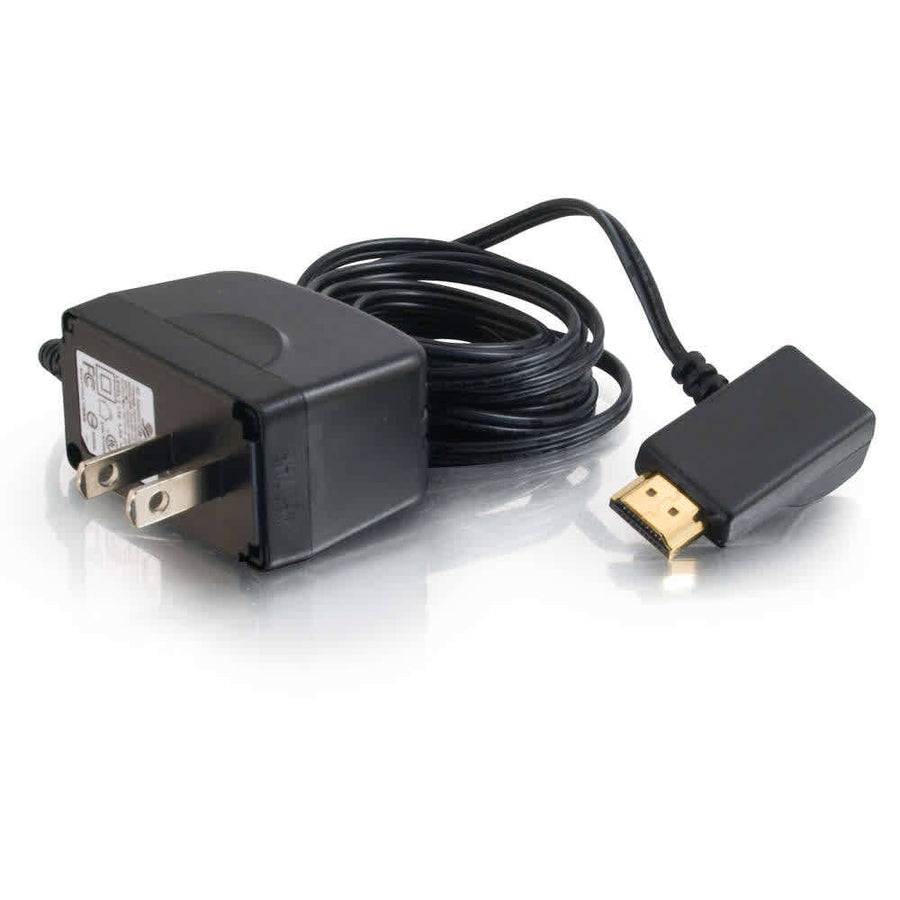

HDMI® Voltage Inserter
Active HDMI voltage inserter that stabilizes Vbus at 5 VAC and increases current capacity to 1000mA for bus-powered accessories
The C2G CG42223 HDMI® Voltage Inserter is a critical tool for integrators managing complex HDMI ecosystems where source devices cannot meet power demands. Standard HDMI sources like computers, media players, and set-top boxes are designed to provide only a 55mA hot plug supply via the 55V bus. However, many professional accessories—including signal sensing switches, active cables with embedded chipsets, or HDMI extenders—require more current than a standard source can provide. Insufficient power often leads to HDCP authentication failures, distorted video, or EDID exchange errors. This active device stabilizes the HDMI Vbus at a consistent 5 VAC and increases the current capacity to 1000mA. By isolating power from the source device, the CG42223 ensures dependable hardware handshakes and signal integrity. This unit is fully compliant with all UltraHD and 4K performance requirements.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| AC Voltage Input | 100-240 V |
| AC Voltage Output | 5 VAC |
| Cable Diameter | 3_6mm |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 10
| Wire Gauge | 22 |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Female |
| Number of Ports | 1 |
| Product Type | Active DeviceVoltage Inserter |
| TAA Compliant | No |
| UPC | 757120422235 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
Questions about this part
How do I install the C2G CG42223 into my HDMI chain?
Connect the voltage inserter directly to the HDMI output port of your source device, then run an HDMI cable from the inserter's output to the input of your display or extender.
What power requirements does this device have?
This active device requires an AC adapter connected to an available power outlet to provide the 5 VAC output needed for your accessories.
Can this device help with HDCP or EDID errors?
Yes, by increasing current capacity to 1000mA, it prevents issues like flashing images or complete signal loss caused by insufficient hot plug supply.
Is the C2G CG42223 compatible with 4K video?
Yes, the device is fully compliant with all UltraHD and 4K performance requirements.
What certifications does this part carry?
The CG42223 is listed with CE, NDAA 889, Prop 65, REACH, RoHS, and TSCA certifications.
