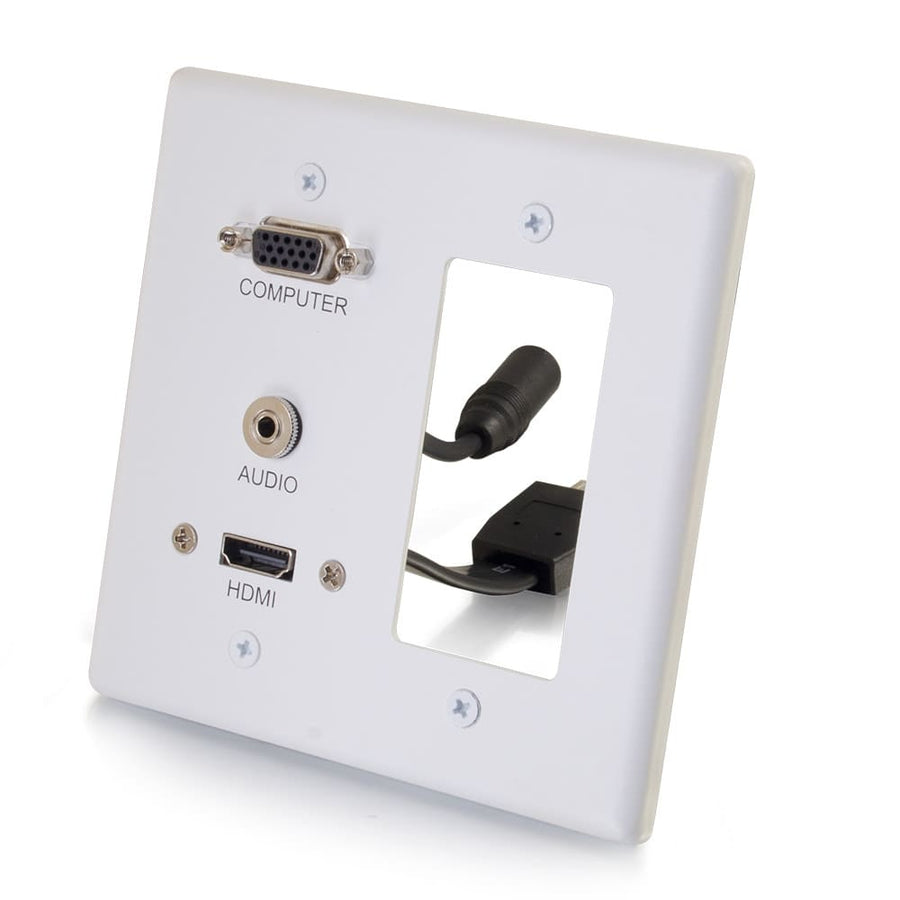

HDMI®, VGA and 3.5mm Audio Pass Through Double Gang Wall Plate with One Decorative Cutout - White
Double gang pass through wall plate for HDMI, VGA, and 3.5mm audio in a white finish
The C2G CG39877 provides a professional transition point for in-wall cabling in commercial and residential environments. This white, double gang pass through wall plate is engineered for use in classrooms, conference rooms, and houses of worship where a clean, integrated connection is required. The unit includes a 4.33 in cable length for the integrated pigtails. To facilitate installation within standard junction boxes, the HDMI and 3.5mm audio ports utilize thin, flexible pigtails that accommodate tight bend radii. This aluminum construction is designed for durability in high-traffic areas. Additionally, the plate features a single decorative cutout, allowing installers to accommodate extra components such as USB Superboosters that fit a standard opening.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Color | White |
| Connector 1 | (1) 3.5mm Stereo Female(1) HDMI Female(1) VGA Female |
| Connector 2 | (1) 3.5mm Stereo Female(1) HDMI Female(1) VGA Female |
| TAA Compliant | No |
| UPC | 757120398776 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
| Cable Length | 4.33 in |
Resources
Questions about this part
Will the C2G CG39877 fit in my existing wall box?
Yes, this pass through wall plate is designed to be compatible with a standard double gang wall box.
Can I add extra connections to this wall plate?
Yes, the plate includes a decorative cutout that provides space for additional components, such as USB Superboosters, that fit a standard opening.
What types of signals can pass through this plate?
This plate supports HDMI audio/video signals, VGA video, and 3.5mm Stereo Audio through its pass through ports.
How does the pigtail design help with installation?
The HDMI and 3.5mm audio ports include thin, flexible pigtails, which make it easier to manage the tight bend radius required inside a standard junction box.
What is the material construction of the CG39877?
The wall plate is constructed of high quality aluminum to provide durability for long-term use in commercial environments.
