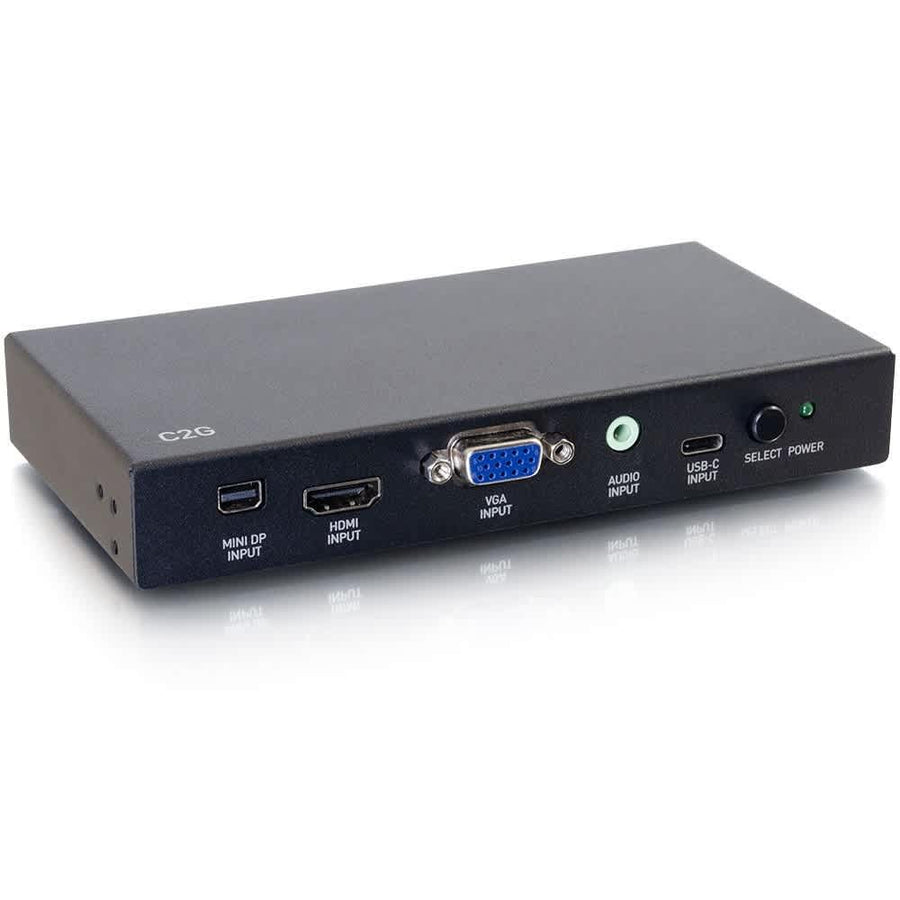

HDMI®, USB-C, Mini DisplayPort™, and VGA to HDMI Adapter Converter Switch - 4K 60Hz
4-input converter switch supporting 4K @ 60Hz for HDMI, USB-C, and Mini DisplayPort, plus VGA with stereo audio
The C2G CG40850 is a versatile active converter switch designed for environments where displays or projectors are limited to a single HDMI input. This device allows an installer to consolidate multiple sources into one connection, eliminating the need for manual input toggling on the display. It features automatic source detection to switch inputs when a new device is connected, as well as a manual push button on the front for direct control. The unit accepts four distinct input types: HDMI, USB-C, Mini DisplayPort, and VGA. When using VGA, the switch also accepts a 3.5mm stereo female audio input. For high-resolution setups, HDMI, USB-C, and Mini DisplayPort signals support up to 4K @ 60Hz (4096 x 2160) resolutions. The VGA input supports resolutions up to 1920 x 1080 at 60Hz. This switch is an efficient solution for conference rooms, classrooms, and lecture halls requiring high-flexibility connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.33 in (8.4 mm) |
| Cable Length | 3.12 in (7.9 cm) |
| Shipping Weight | 1.65 lbs (0.8 kg) |
| Color | Black |
| Connector 1 | (1) 3.5mm Stereo Female(1) HDMI Female(1) Mini DisplayPort Female(1) USB-C Female(1) VGA Female |
| Connector 2 | (1) HDMI Female |
| Product Type | Active DeviceAdapterConverterSwitch |
| TAA Compliant | No |
All other specifications 5
| UPC | 757120408505 |
| Video Input Support | HDMIMini DisplayPortVGA |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | FCCNDAA 889Prop 65REACHRoHSTSCA |
Resources
Questions about this part
What video resolutions does the CG40850 support?
The switch supports up to 4K @ 60Hz (4096 x 2160) for HDMI, USB-C, and Mini DisplayPort inputs, while the VGA input supports up to 1920 x 1080 at 60Hz.
Will the CG40850 work with my existing VGA equipment?
Yes, the CG40850 includes a VGA female input that also accepts a 3.5mm stereo female audio connection to maintain sound alongside the video signal.
How do I switch between the different connected devices?
You can use the integrated automatic source detection to switch when a device is plugged in, or use the manual push button located on the front of the unit.
What types of inputs can I connect to this switch?
The device provides four input ports: one HDMI female, one USB-C female, one Mini DisplayPort female, and one VGA female.
Which technical documents are available for this unit?
You can access the C2G-40850 User Manual or the product datasheet for full technical details via the manufacturer links.
