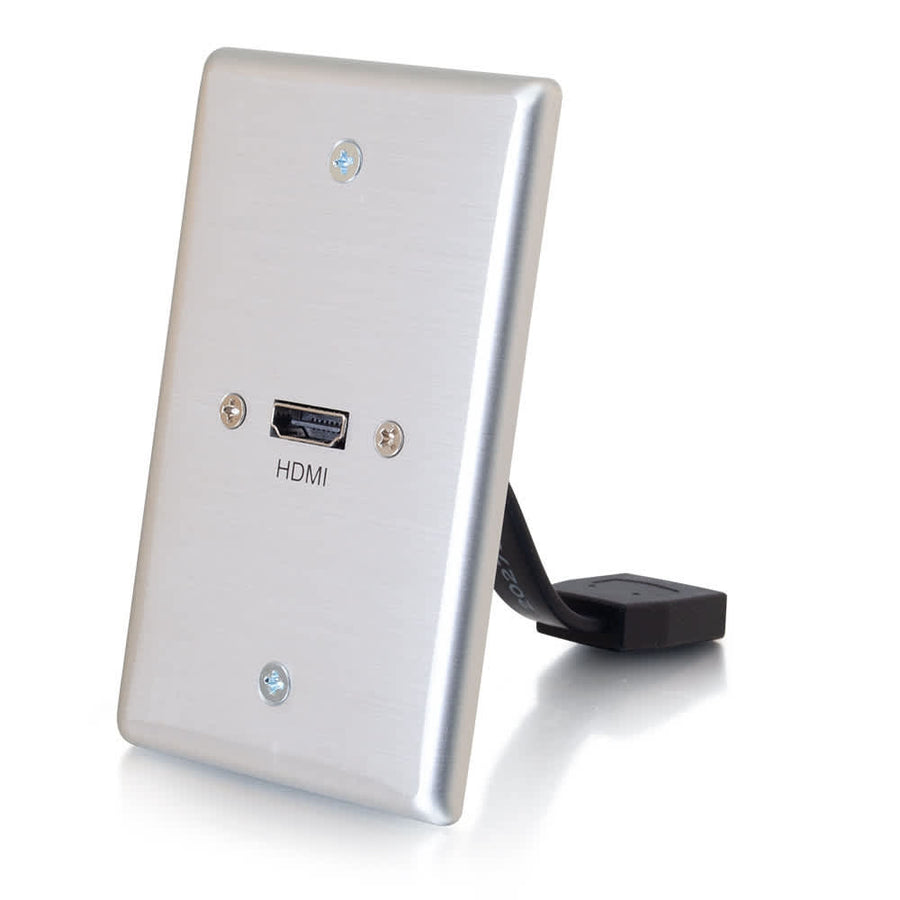

HDMI® Pass Through Single Gang Wall Plate - Brushed Aluminum
Single gang HDMI pass through wall plate for 4K and 1080p video signals, featuring a flexible pigtail for junction box installations
The C2G CG39870 HDMI Pass Through Single Gang Wall Plate provides a professional solution for transitioning HDMI cabling through a wall. This aluminum wall plate is designed for high-traffic commercial environments like conference rooms, classrooms, and houses of worship where durability is required. It is engineered to fit into a standard single gang wall box, making it an efficient choice for system integrators performing in-wall cable management. This plate supports both HDMI audio and video signals at 4K and 1080p resolutions. To address the space constraints often found in standard junction boxes, the unit features a thin, flexible HDMI pigtail. This pigtail has a 30mm bend radius and a cable length of 4.33 in (11 cm), allowing for easier routing and installation within tight spaces. The hardware is constructed from high-quality aluminum to withstand constant wear and tear in professional AV setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 30mm |
| Cable Length | 4.33 in (11 cm) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
All other specifications 16
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Color | Aluminum |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Female |
| Number of Ports | 1 |
| Product Type | Wall Plate |
| TAA Compliant | No |
| UPC | 757120398707 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
You'll need these with it
6ft (1.8m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10377$26.99
35ft (10.7m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41414$143.99
15ft (4.5m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41412$94.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
50ft (15.2m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10384$200.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Questions about this part
Will this CG39870 wall plate support 4K video?
Yes, the CG39870 supports video resolutions up to 4K and 1080p for both input and output signals.
What kind of wall box does this HDMI plate fit?
The CG39870 is designed to be compatible with any standard single gang wall box.
How do I install this in a tight junction box?
The plate includes a 4.33 in (11 cm) flexible HDMI pigtail with a 30mm bend radius to accommodate the tight turns required inside a wall box.
What is the difference between the CG39870 and other C2G wall plates?
The CG39870 is an aluminum pass-through variant; other options in this series may feature different finishes like Black.
Which C2G cables are compatible with this pass-through plate?
This plate is compatible with several C2G cables, including the Performance Series Ultra Flexible HDMI cables and the Plus Series Active High Speed HDMI cables.
