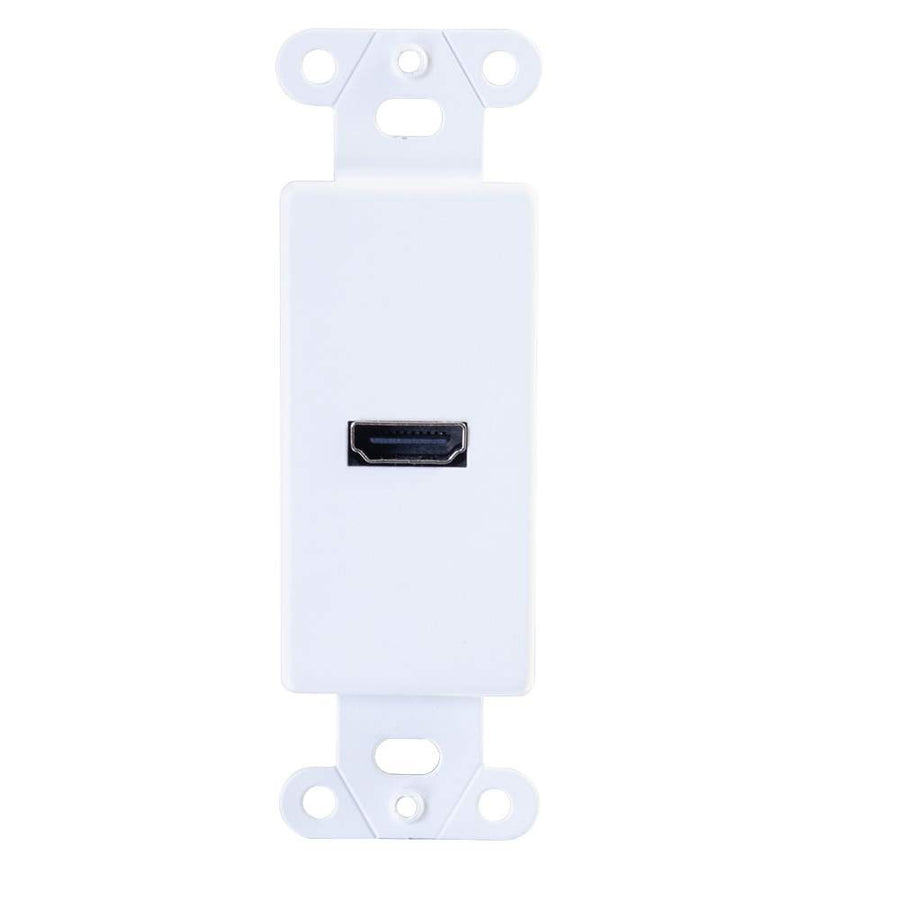

HDMI Pass Through Decorative Wall Plate - White
White HDMI pass-through wall plate with flexible pigtails for easy in-wall connection of 4K and 1080p devices
The C2G CG39710 is an HDMI pass-through wall plate designed to facilitate the connection of HDMI devices to projectors via in-wall cabling. This white decorative wall plate features integrated, flexible HDMI pigtails that simplify installation within a wall box, providing more space and flexibility than traditional plates requiring standard HDMI cable connections. Built with aluminum construction, this plate offers long-term durability for professional AV installations. It is engineered to support both 4K and 1080p video resolutions and handles audio/video signals from two separate devices. This unit is designed for use with standard decorative wall plate covers to maintain a finished appearance. The internal cable length is 4.33 in (11 cm). This component is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C) and functions in non-condensing humidity between 20% RH and 80% RH.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 4.33 in (11 cm) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 13
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | White |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Female |
| Number of Ports | 1 |
| Product Type | Wall Plate |
| TAA Compliant | No |
| UPC | 757120397106 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
You'll need these with it
6ft (1.8m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10377$26.99
35ft (10.7m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41414$143.99
15ft (4.5m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41412$94.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
50ft (15.2m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10384$200.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Questions about this part
Will the CG39710 support 4K video signals?
Yes, this pass-through plate supports both 4K and 1080p video resolutions for HDMI audio/video signals.
What is the benefit of the pigtail design in this wall plate?
The flexible 4.33 in (11 cm) HDMI pigtails allow for much easier installation inside a wall box compared to plates that require a standard, rigid HDMI cable connection.
Does this plate work with two different devices?
The plate is designed to support HDMI audio/video signals from two separate devices through its two HDMI female connectors.
What other items do I need for a complete installation?
This is a wall plate only and must be used with decorative wall plate covers. You will also need the appropriate HDMI cables, such as the CG41414 35ft Plus Series Active HDMI cable.
Is the CG39710 compliant with NDAA 889?
This product is not listed as TAA compliant and does not carry NDAA 889 certification in its current documentation.
