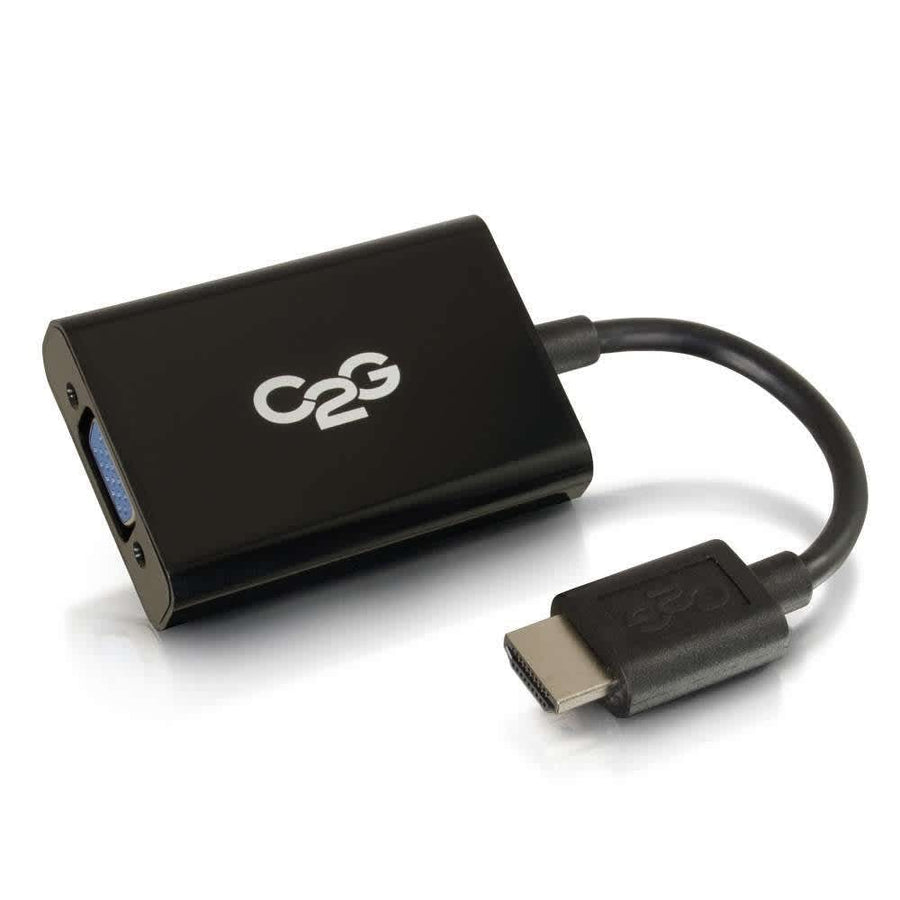

HDMI® Male to VGA and Stereo Audio Female Adapter Converter Dongle
HDMI Male to VGA and 3.5mm Stereo Female adapter dongle supporting resolutions up to 1920x1080
The C2G CG41351 is an HDMI Male to VGA and Stereo Audio Female adapter converter dongle designed to bridge the gap between modern HDMI-enabled laptops, such as Chromebooks, and legacy VGA-based displays. By utilizing a dongle-style design rather than a bulky breakout box, this adapter reduces physical stress on the laptop's HDMI port during use. This converter supports video resolutions up to 1920x1080, including 1080i and 1080p, making it suitable for high-performance applications. To complete the setup, an installer will need to provide a VGA cable for the video signal and a 3.5mm stereo audio cable to connect to a set of speakers. The unit features a 0.67 ft (204.16 mm) cable length with a 4.8 mm diameter and operates within a temperature range of 0°C to 70°C. This device is NDAA 889, REACH, RoHS, and TSCA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) 3.5mm Stereo Female(1) VGA Female |
| TAA Compliant | No |
| UPC | 757120413516 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
| Cable Diameter | 4.8 mm |
| Cable Length | 0.67 ft |
Questions about this part
Will this adapter work with my HDMI laptop and VGA projector?
Yes, the CG41351 converts an HDMI Male output to VGA Female and 3.5mm Stereo Female, allowing you to connect HDMI-enabled devices to VGA displays and external speakers.
What resolutions can I run through the CG41351?
This converter supports resolutions including 1080i/1080p, 1600x1200, 1280x1024, 800x600, 720i/720p, and 576i/576p.
What cables do I need to buy to complete this connection?
You will need to provide your own VGA cable for the video signal and a 3.5mm stereo audio cable to connect to your speakers.
Does the CG41351 support audio output?
Yes, the adapter includes a 3.5mm Stereo Female jack to pass through audio alongside the VGA video signal.
Is the CG41351 NDAA compliant?
Yes, the CG41351 is listed as NDAA 889 compliant and also meets RoHS, REACH, and TSCA standards.
