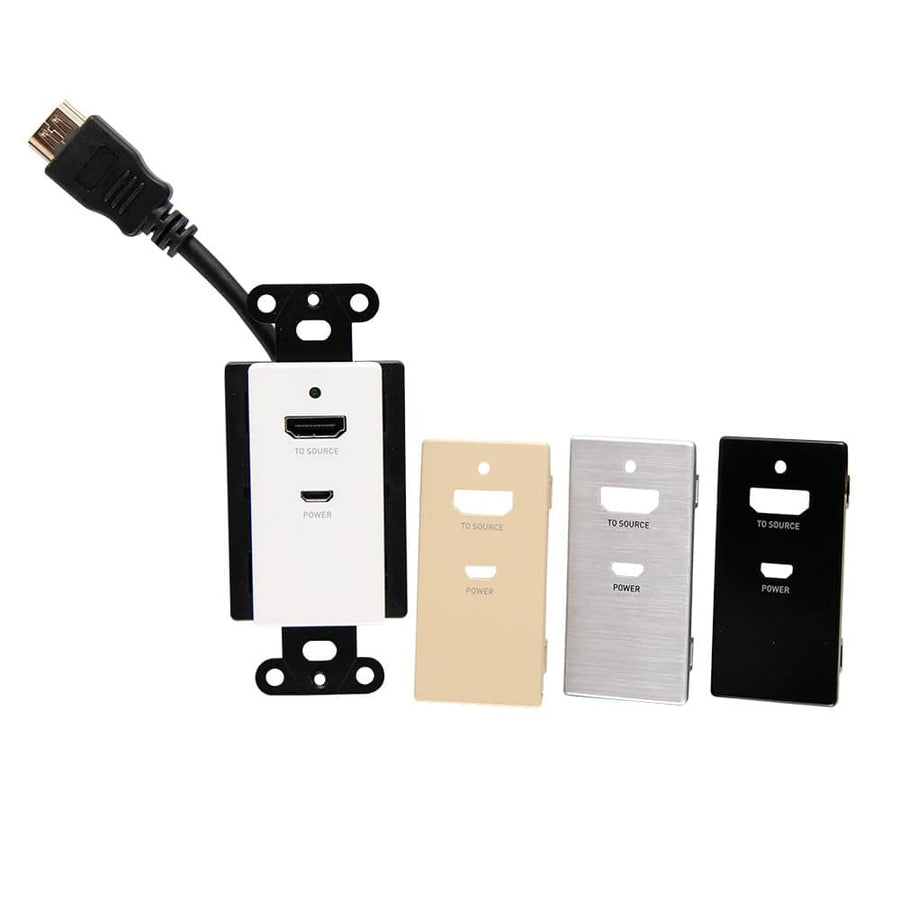

HDMI Inline Extender Decorative Wall Plate with Interchangeable Wall Plate Covers - 4K 60Hz
HDMI inline extender wall plate supporting 4K 60Hz resolutions and 18Gbps signal bandwidth
The C2G42395 is an HDMI inline signal booster and decorative wall plate designed for transitioning to in-wall cabling. This solution allows installers to conceal and extend 4K HDMI signals behind the wall, eliminating the need for loose cables running across floors in classrooms, huddle spaces, conference rooms, or home offices. The device supports resolutions up to 4K (4096 x 2160) at 60 Hz with a signal bandwidth of 18Gbps. It features two HDMI Female connectors and requires an external power supply for the LED indicator, which can be set to off or blinking. This TAA compliant component operates within an ambient temperature range of 0°C to 40°C (Non-Condensing) and maintains a storage temperature range from -20°C to +80°C. The unit is built to a 32AWG cable specification with an outer diameter of 5.5 ± 0.2mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.7 lbs (0.3 kg) |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Female |
| TAA Compliant | Yes |
| UPC | 757120423959 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | 5 years |
| Color | Black |
Resources
You'll need these with it
Questions about this part
Will this extender support 4K video signals?
Yes, the C2G42395 supports resolutions up to 4K (4096 x 2160) at 60 Hz with 18Gbps bandwidth.
Does this wall plate require an external power supply?
Yes, an external power supply is required if you want to use the LED indicator, which can be set to a blinking state or turned off.
What HDMI cables are compatible with this extender?
You can use the C2G10411 6ft Ultra High Speed HDMI® Cable or the C2G10378 10ft Performance Series Ultra Flexible High Speed HDMI® Cable.
Is the C2G42395 TAA compliant?
Yes, this product is TAA compliant and meets NDAA 889 requirements.
How do I manage the signal boosting for in-wall installation?
The C2G42395 acts as an inline signal booster to facilitate the transition to in-wall cabling, preventing signal degradation in huddle spaces or classrooms.
