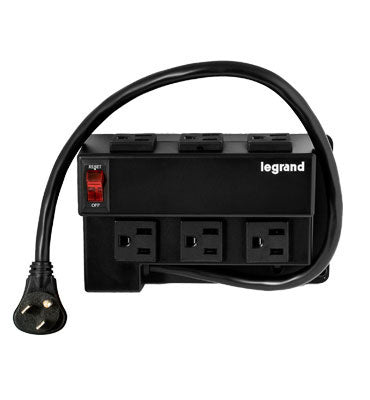

Half Width Enclosure Power Strip Module
Half-width enclosure power strip with 6 receptacles, surge protection, and 15 Amp capacity
The On-Q AC1031 is a specialized power strip module designed to provide reliable AC power within low voltage enclosures. This module features six 5-15R receptacles to support various power supplies. The layout includes three top outlets specifically designed to accommodate PW-series power straps, and three side outlets configured to fit most common low voltage transformers. For simplified installation and cable management, the module is equipped with a 19 in (48.3 cm) power cord that features a right-angle plug. This 15 Amp, 120 VAC unit includes integrated surge protection for enhanced equipment safety and a single power switch that controls all six outlets. This UL Listed module is built to maintain power distribution in organized, professional media enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cable Length | 19 in |
| Length | 19 in (48.3 cm) |
| Package Count | 1 |
| Volts AC | 120 VAC |
| Color | Black |
| Number of Receptacles | 6 |
| Outlet Type | IndoorSurge Protected |
All other specifications 6
| Product Type | Power Strip |
| Receptacle Type | 5-15R |
| Special Features | Surge Protection |
| Certifications | RoHSUL Listed |
| Warranty | 1 year |
| Cord Length | 19 in |
Resources
Questions about this part
What kind of power supplies will fit in the AC1031?
The module includes three side outlets designed for most low voltage transformers and three top outlets designed for PW-series power straps.
Does the AC1031 include adapters?
Yes, this module includes 3 IEC adapters to facilitate connection to various equipment types.
What are the electrical ratings for this power module?
The AC1031 is a 15 Amp, 120 VAC module that features integrated surge protection.
How is the power cord configured for installation?
The unit comes with a 19 in (48.3 cm) power cord that utilizes a right-angle plug for easier fitment in tight enclosure spaces.
Is this power strip UL listed?
Yes, the AC1031 is UL Listed and carries RoHS certification.
