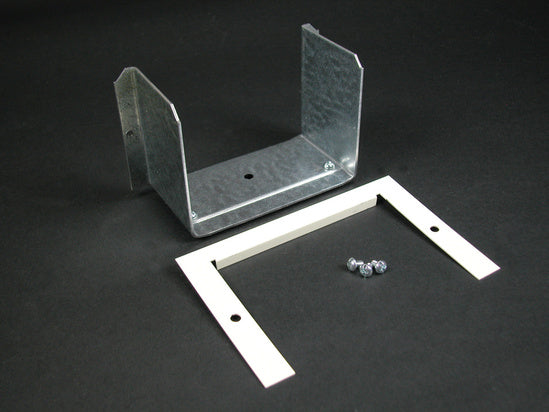

G6086 6000 Panel Connector Fitting in Gray
Gray connector fitting for 6000 Series Raceway to integrate with surface type panel boxes
The Wiremold G6086 is used to connect 6000 Series Raceway systems directly to surface type panel boxes. This connector is designed to accommodate the maximum wire capacity available within the 6000 system. It features a separate C-flange that fits around the raceway to cover any irregularities caused when cutting into a panel box. To install, a hole measuring 4 3/4" x 3 9/16" (121mm x 90mm) must be cut into the panel box. This gray-finished component is TAA compliant and supports the continuous routing of cabling from surface raceways into existing electrical enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Gray |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What size hole do I need to cut for the G6086?
You must cut a 4 3/4" x 3 9/16" (121mm x 90mm) hole in the panel box for installation.
Will this connector handle the full capacity of my 6000 Series system?
Yes, the G6086 is designed to accommodate the maximum wire capacity of the 6000 system.
How does the C-flange function on this fitting?
The separate C-flange fits around the raceway to cover any irregularities made when cutting into the box.
Is the Wiremold G6086 TAA compliant?
Yes, this part is TAA compliant and carries RoHS certification.
What is the difference between the G6086 and other 6000 Series fittings?
The G6086 is the gray version; the series also offers an ivory color option for different aesthetic requirements.
