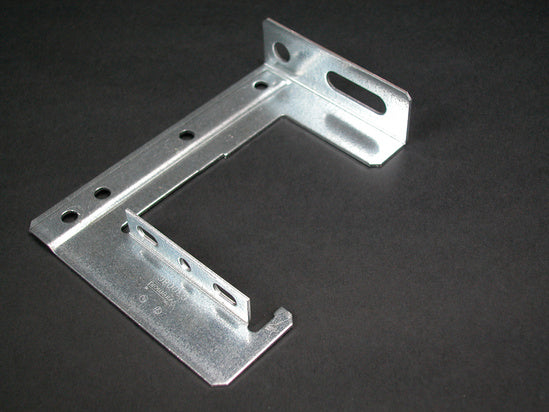

G3008C 3000 C-Hanger Fitting
Ceiling hanger for 3000 Series Raceway, supports 3/8" threaded rod and dual-channel configurations
The Wiremold G3008C is a C-Hanger Fitting designed to suspend 3000 Series Raceway from structural ceilings. This fitting is engineered for use with 3/8" (9.5mm) threaded rod to provide a secure attachment to overhead structures. For optimal stability, installers should install these hangers at intervals no more than 5' (1.5m) apart along the length of the raceway run. When running multiple lines, these C-Hangers can be mounted back-to-back to support a double run of 3000 Series Raceway. This component is RoHS compliant and meets TAA requirements for federal projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Gray |
Resources
Questions about this part
What hardware is needed to install the G3008C?
This fitting is designed for use with 3/8" (9.5mm) threaded rod for ceiling suspension.
How far apart can I space these hangers in a run?
Hangers should be installed at intervals of no more than 5' (1.5m) along the raceway run.
Can I use these for a double channel installation?
Yes, the G3008C can be mounted back-to-back to support a double run of 3000 Series Raceway.
Is this product compliant for government contracts?
Yes, the G3008C is TAA compliant and meets RoHS material restrictions.
