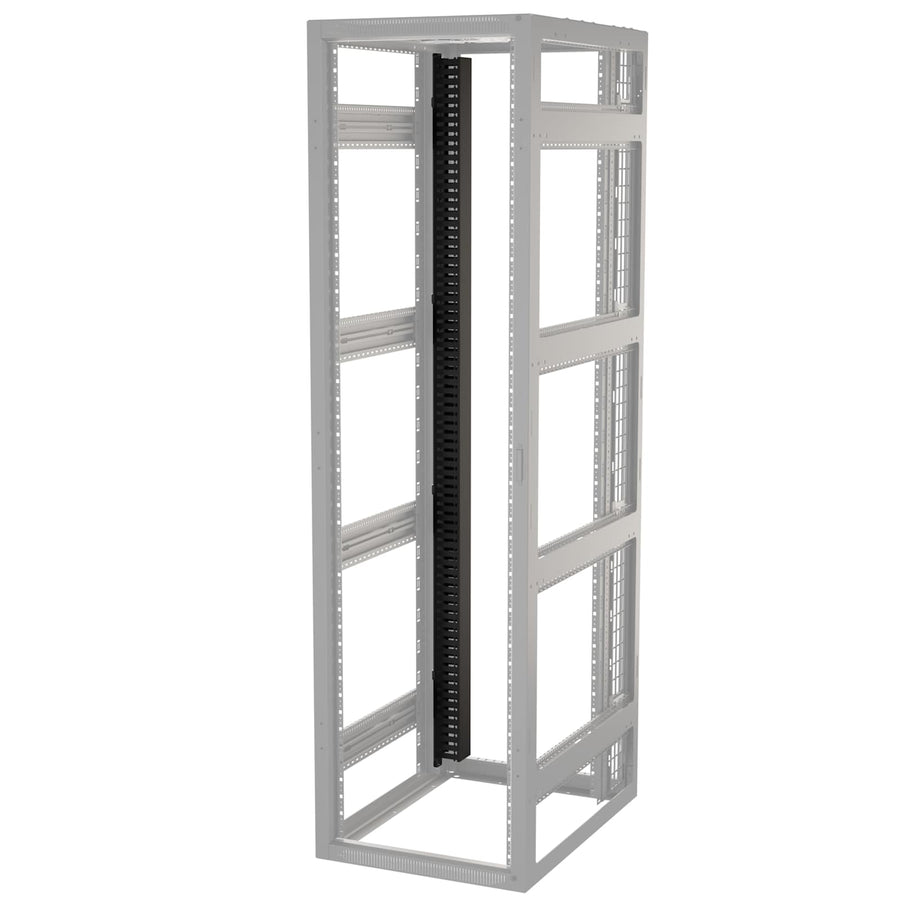

Forward Vertical Cable Duct, 3 Inches Wide
3" wide vertical cable duct for 44-45RU BGR and SR Series racks, featuring tool-free installation and slotted finger design
The FWD-VPCD-3X3-44-45 is a 3-inch wide vertical cable duct designed to organize and dress cabling vertically within the rear of a rack. This unit is specifically engineered for 44-45RU configurations and is Forward Compatible with Middle Atlantic BGR and SR Series racks. Because it is part of the Forward family, it offers a drop-in, tool-free installation into Lever Lock™ compatible rackrail brackets, which significantly accelerates the deployment process. Constructed from a combination of steel and PVC plastic, this duct features a slotted finger design that allows for precise cable exit at the exact point required by the installer. For specialized routing, the fingers can be easily removed to create larger openings. The 78.75 in (200 cm) total height provides a usable height of 77 in (195.6 cm). This duct provides a usable depth of 2.94 in (7.5 cm) to manage cable slack and routing. It includes the necessary mounting hardware and plastic covers for a complete installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 78.75 in (200 cm) |
| Package Count | 1 |
| Product Weight | 6.14 lbs (2.8 kg) |
| Rack Units | 44-45 RU |
| Shipping Weight | 8.86 lbs (4 kg) |
| Usable Depth | 2.94 in (7.5 cm) |
| Usable Height | 77 in (195.6 cm) |
| Width | 3 in (7.6 cm) |
All other specifications 8
| Available Internationally | Yes |
| Base Series | BGR |
| Color | Black |
| Finish | PVC Plastic |
| Forward Compatible | Yes |
| Material | PVCSteel |
| Mounting Hardware Included | Yes |
| UPC | 656747400094 |
Resources
Questions about this part
Will this duct fit my Middle Atlantic rack?
The FWD-VPCD-3X3-44-45 is designed for 44-45RU BGR and SR Series racks and is compatible with Lever Lock™ rackrail brackets.
How is the installation process for the FWD-VPCD-3X3-44-45?
This duct features a tool-free, drop-in installation, making it compatible with Forward-style rackrail brackets for faster setup.
Can I adjust the finger openings for different cable sizes?
Yes, the slotted finger design allows for cable exit exactly where needed, and fingers can be removed to create larger openings.
What mounting hardware is required for installation?
This SKU includes all the hardware needed for any Middle Atlantic Products rackrail bracket style.
Which document should I use for submittals and installation?
You can refer to the Forward Vertical Cable Ducts A&E PDF for technical details or the Installation Instructions PDF for setup guidance.
