Fan Top Accepts One 10 Inch Fan
Active thermal management fan top accepting one 10 inch fan for Middle Atlantic rack series

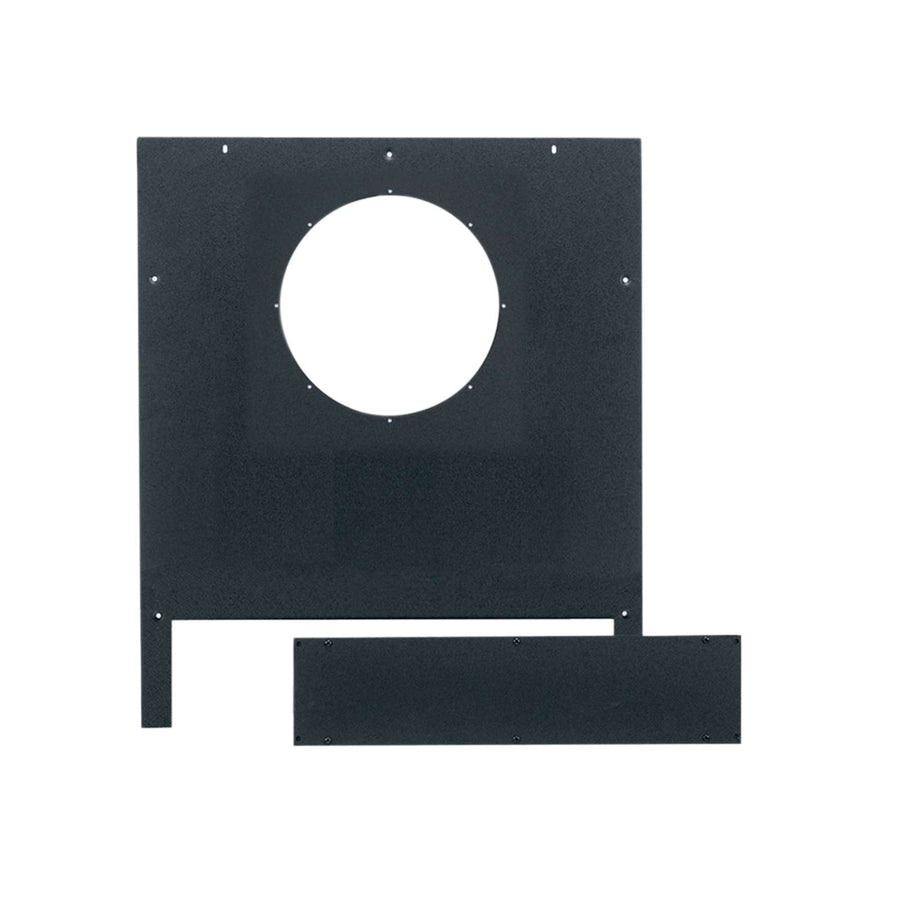

The MW-10FT is a steel fan top panel designed for active thermal management within professional rack enclosures. This component is specifically engineered to accept one 10 in (25.4 cm) fan to facilitate airflow. It is compatible with a wide range of Middle Atlantic rack series, including the WR, WRK, MRK, VRK, VMRK, and DRK models. To simplify maintenance in high-density environments, this panel features an integrated removable two space service plate. This service plate allows installers to remove the top of the rack for access without the need to disrupt or re-route existing cable bundles. This unit is TAA compliant and finished in black to match standard rack hardware.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Fan Size | 10 in (25.4 cm) |
| Height | 25.06 in (63.7 cm) |
| Width | 21.7 in (55.1 cm) |
| Color | Black |
| Component Type | Active |
| Controlled | No |
| Material | Steel |
| UPC | 656747011795 |
You'll need these with it
Questions about this part
Which Middle Atlantic rack series is this fan top compatible with?
The MW-10FT is designed to fit WR, WRK, MRK, VRK, VMRK, and DRK series racks.
What fan should I purchase to use with this panel?
This panel is designed to accept a 10 inch fan; for example, the BMF-FAN10 115V 10 Inch 825 CFM fan is a compatible option.
How does the service plate help during maintenance?
The included removable two space service plate allows you to remove the top of the rack for service without having to move or disrupt your cable bundles.
Is this fan top TAA compliant?
Yes, the MW-10FT is TAA compliant and carries PEP certification.
Does this panel require external control?
This is an active component, but it is listed as not controlled.
