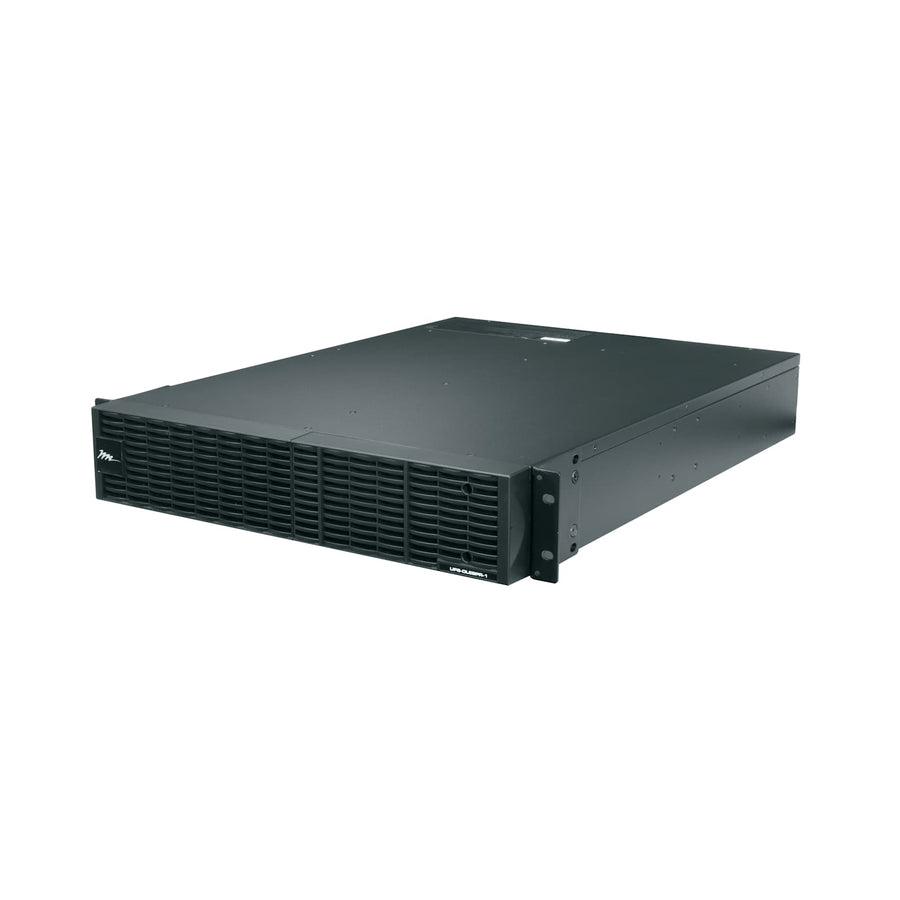

Expansion Battery Pack 2200/3000VA
Expansion battery pack providing additional runtime for Premium Online UPS models UPS-OL2200R and UPS-OL3000R
The UPS-OLEBPR-1 is an expansion battery pack designed to increase the runtime of Premium Online Series UPS Backup Power Systems. This unit specifically serves as an extension for UPS-OL2200R and UPS-OL3000R models. For installers requiring maximum uptime, up to 10 battery expansion packs can be daisy-chained together to achieve the longest possible runtime within this form factor. Maintenance is streamlined through front-accessible batteries and remote IP management capabilities. This specific SKU is currently pending obsolescence; for future system designs, the manufacturer suggests utilizing the UPX-EXPANRUN-OL20 or UPX-EXPANRUN-OL30 replacements. This UL Listed and FCC compliant power accessory is an essential component for safeguarding mission-critical systems that require isolated, pure sine wave output and double conversion topology to maintain uptime during power fluctuations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 22.26 in (56.5 cm) |
| Height | 3.46 in (8.8 cm) |
| Shipping Weight | 105.5 lbs (47.9 kg) |
| Width | 19 in (48.3 cm) |
| TAA Compliant | No |
| UPC | 656747272615 |
| Certifications | FCCUL Listed |
Resources
Questions about this part
Which UPS models is the UPS-OLEBPR-1 compatible with?
This expansion pack is designed to work with Premium Online UPS models UPS-OL2200R and UPS-OL3000R.
How many expansion battery packs can I daisy-chain?
You can daisy-chain up to 10 of these battery expansion packs to achieve the longest runtime available in this form factor.
What replacement batteries are required for this unit?
This unit requires two (2) UPS-OLRBP-2 replacement battery packs.
What is the suggested replacement for this SKU?
As this product is pending obsolescence, Middle Atlantic suggests the UPX-EXPANRUN-OL20 or UPX-EXPANRUN-OL30 as replacements.
How do I manage the UPS system remotely?
The Premium Online Series supports remote IP management to allow for simplified maintenance and system control.
