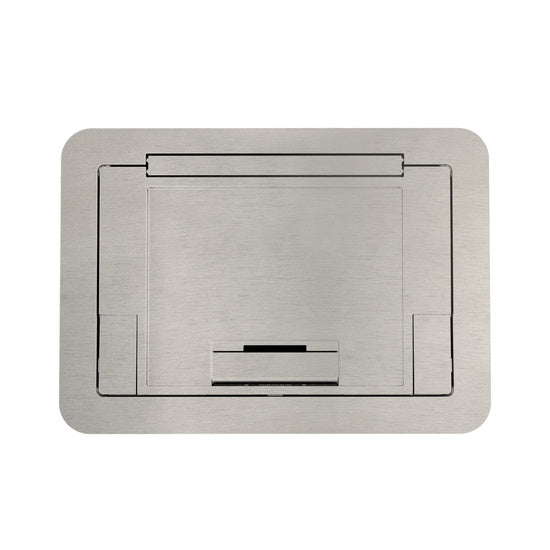

Evolution™ EFB45 Flush Style Cover with Floor Insert in Satin Nickel
Flush-style die-cast aluminum cover for EFB45S floor boxes, featuring a 1/4" recessed area for floor inserts
The Wiremold EFB45CTSN is a flush-style cover designed for use with EFB45S style floor boxes. Constructed from die-cast aluminum, this cover features a durable hinge that allows it to rotate open up to 180°. It includes a 1/4" deep recessed area intended to accept finished floor coverings like carpet, tile, or wood. For installations on polished concrete or terrazzo, the EFB45-CTR ring must be used (sold separately) to achieve a flush finish. The assembly utilizes two slide egress doors that lock in the open position and automatically close around cables when the cover is shut. This TAA compliant component is finished in Satin Nickel and is suitable for professional environments requiring a low-profile, integrated floor appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Satin Nickel |
| Cover Style | Flush |
| Receptacle Type | Standard |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work with polished concrete or terrazzo floors?
To sit flush with polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What type of flooring can this cover accept?
The 1/4" deep recessed area is designed to accept finished floor coverings such as carpet, tile, or wood.
Does this cover include the floor box itself?
No, this is a cover and floor insert designed to attach to an EFB45S style floor box.
How do the cable egress doors work?
The cover includes two slide egress doors that lock in the open position and automatically close around cables when the cover is closed.
What is the warranty for this Wiremold cover?
This product carries a warranty of 1-year from installation or 2-years from the date of sale.
